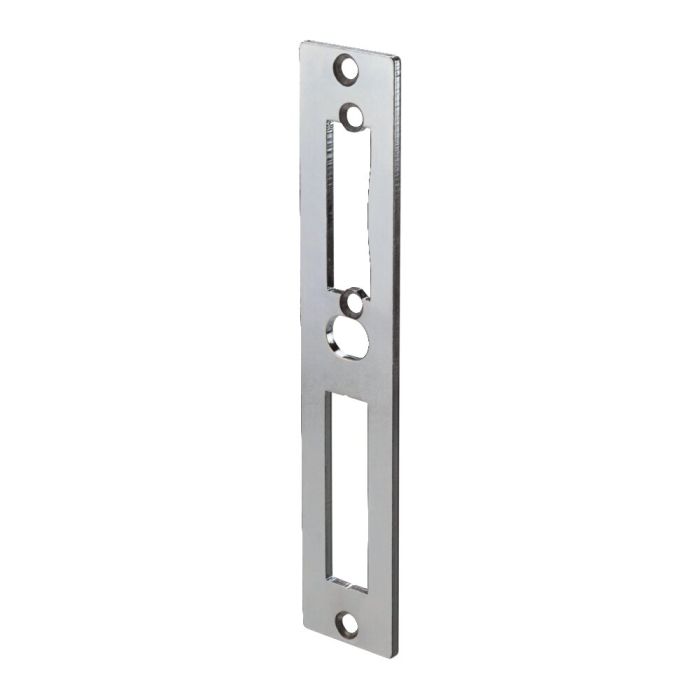

Striking plate, zinc-plated

Application:
Suitable for striking boxes with sliding bolts:
Order no. 553131: 144ET, 146ET, 147, 147B Case width 30 mm
Order no. 553133: 144ET, 146ET, 147, 147A, 147B Case width 40 mm
Order no. 553134: 144ET, 147, 147B Case width 50 mm
Order no. 553135: 144ET Case width 60 mm

Suitable for cased locks:
Order no. 553131: 141U, 140U, 140UM, 140D, 140P, 140PGN Case width 30 mm
Order no. 553132: 140U Case width 34 mm
Order no. 553133: 141U, 140U, 140UM, 140UMV, 140D, 140P, 140PGN Case width 40 mm
Order no. 553134: 140U Case width 50 mm
Order no. 553135: 140U Case width 60 mm

Note:
These striking plates can be used to advantage if the frame also serves as the "lock casing". It is then not necessary to create precise recesses for the hook latch and deadbolt.
The bores for fastening the striking plate in the closing or striking box are centrally arranged.
