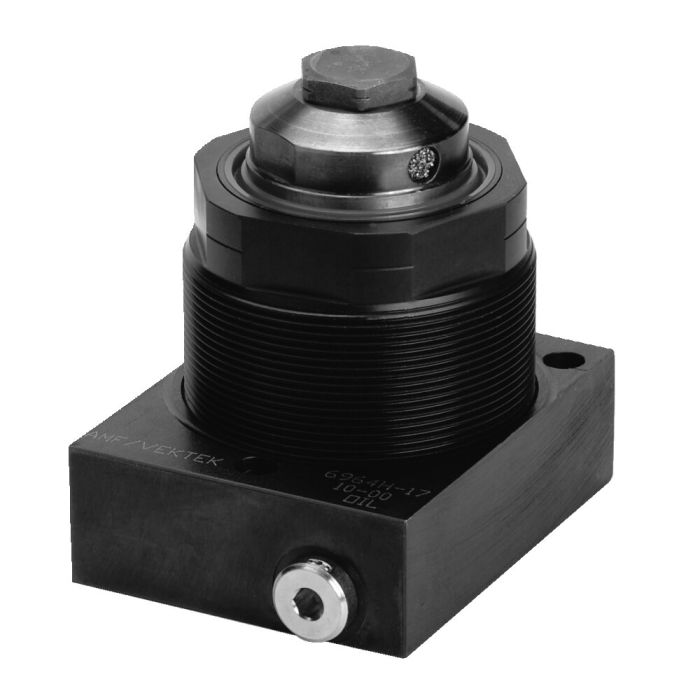

Support Element, base-flange-mounting

Max. support force 17 kN, stroke 12,5 mm, spring advanced, hydraulic advanced

Order no.

325878

Product variants

Order no.	Article no.	Contact force F1 [N]	Support force at 350 bar [kN]	Stroke C [mm]	Q max. [l/min]	Vol. [cm³]	Weight [g]
325878	6964H-17-3	26,5 - 53,5	17	12,5	2,13	10,5	1920
66746	6964H-11-2	13,5-44,5	11	6,5	2,13	3,0	845

Details

Application:
For protection against entry of chips and splash water.

Note:
Use only for hydraulic support element. Observe mounting position!
Not suitable for the support elements with backpressure query 6964HS.
For splash guard 6964H-11-20, make sure that the stroke is less than 9 mm.

Technical specifications

More Information
Order no.	325878
Max. operating pressure [bar]	350
Max. support force [kN]	17
Stroke [mm]	12.5
Mounting	Flange design
Positioning	Hydraulic

CAD

Downloads

Pimcore content from synoa_downloadsnk_downloads_tab_top

Area	Language	File name	Type	File size

Pimcore content from synoa_downloadsnk_downloads_tab_bottom

Order no.	dia. a	b	D	E	F	G	SW	SW1	J x depth	k	L	m	P	Q	R	S	dia. T	X	Y	Z	ØAA	BB	dia. CC	DD	OR-1 O-ring Order No.	OR-2 O-ring Order No.
325878	38,0	82,5	40	25,0	12,5	M60x1,5	54	19	M12x6,5	73,0	5	52,4	81,0	36,5	G1/8	26,2	7,1	62,6	16,0	10,5	14,1	6,35	9,91	1,78	330803	335422
66746	20,5	82,5	34	31,5	9,0	M35x1,5	30	19	M12x6,5	41,5	5	30,2	58,5	24,0	G1/8	18,3	7,1	43,1	10,5	10,5	14,1	6,35	9,91	1,78	330803	335422
