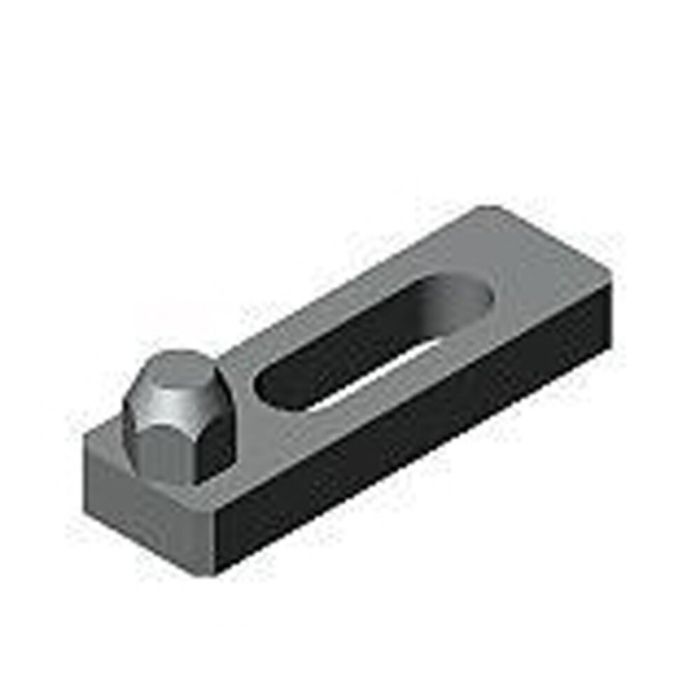

Support strip with pin
Support height 25 mm, dia. pin 10 mm, length 80,5 mm, width 25,5 mm
| Order no. | Article no. | Support height H ±0.01 | Weight
[g] | Availability | Your Price |
| 300384 | 6363-12-103-1 | 25 | 150 | | |
| 300392 | 6363-16-103-1 | 30 | 255 | | |
| | | | | |
| Order no. | b | L | L1 | L2 | L3 | C | dia. D
| SW | S | F |
| 300384 | 25,5 | 80,5 | 8 | 23 | 29 | 2x45° | 10 | 14 | 12,5 | 11 |
| 300392 | 32,5 | 100,5 | 10 | 28 | 36 | 2x45° | 12 | 17 | 17,0 | 12 |
| | | | | | | | | | |
More Information | Order no. | 300384 |
|---|
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size | |
Similar products
Support strip Nr. 300269 Support height 25 mm, dia. drilling M12, length 110 mm, width 39 mm
