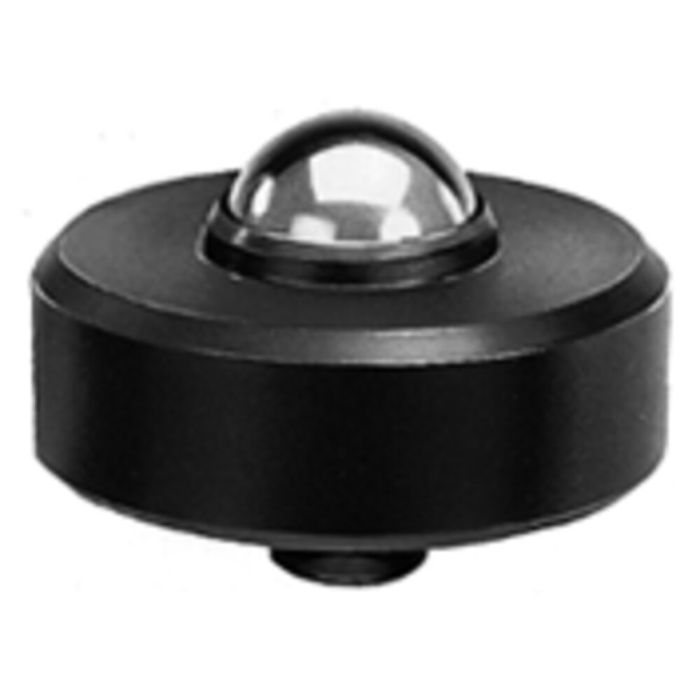

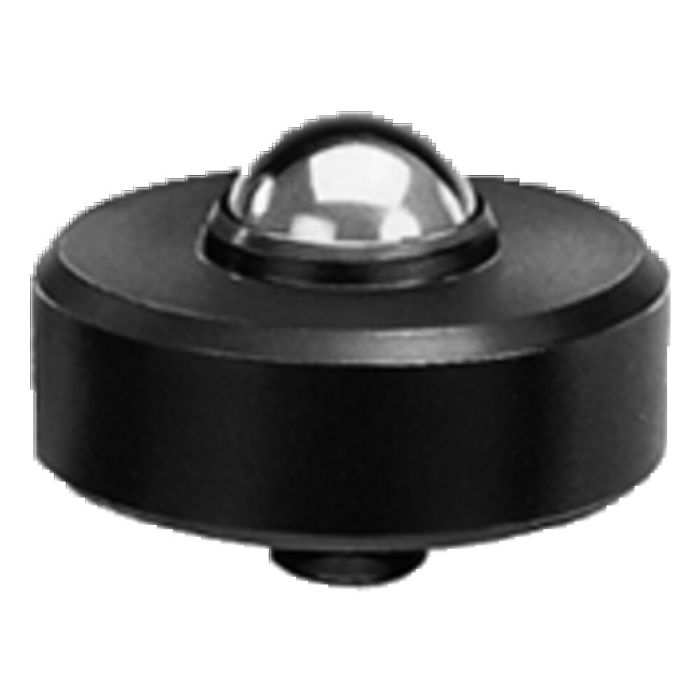

Support with pivotable ball
⌀ 45 mm, height 25 mm, max. clamping force 30 kN
Order no.
72819
Application:
This rugged element was designed for the supporting and alignment of workpieces made of cast iron and forging-grade steels. Designed for use with AMF-screw jacks.
Advantage:
- The pivotable ball minimizes the friction on the support and reduces the requir-ed operating forces.
- The use of a point-like support prevents the transmission of the torsional force created by the movement of the spindle. The position of the workpiece remains unchanged.
- The simple and rugged construction provides for a long lasting service life.
| Order no. | 72819 |
|---|---|
| Product type | Attachments |
| Min. height [mm] | 25 |
| Max. height [mm] | 25 |
