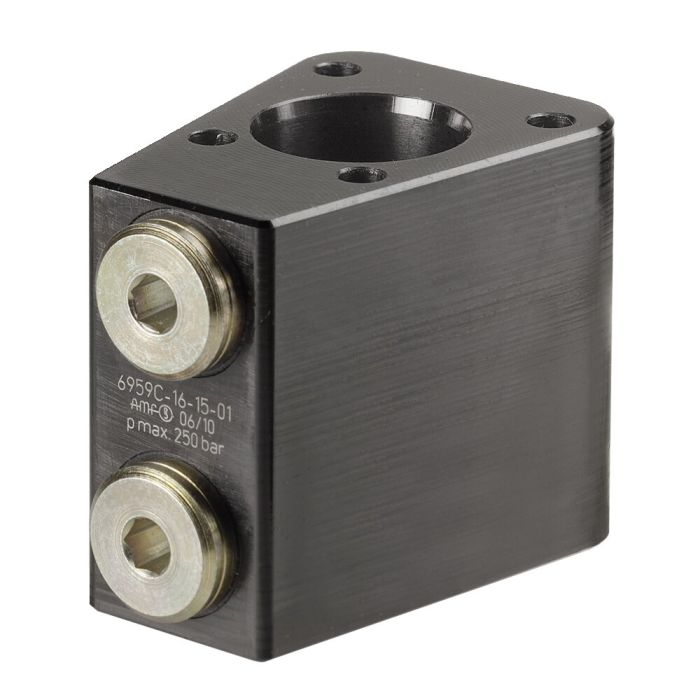

Surface-mounted block

Design:
Steel, burnished.
Supply scope includes O-ring dia.9x2, threaded plugs and fastening screws.

Application:
The surface-mounted block can be flange-mounted as an adapter via the control channels in the fixture. It can also be arranged on the fixture and used there when the control oil supply has to be routed to the link clamps via external lines.

Note:
The flange surface on the fixture must be even for using the O-ring connection and must have a surface finish of Rz 6.3 around the O-ring sealing surface. The flange surface on the fixture must be even for using the threaded connections.
Other lengths available on request.
