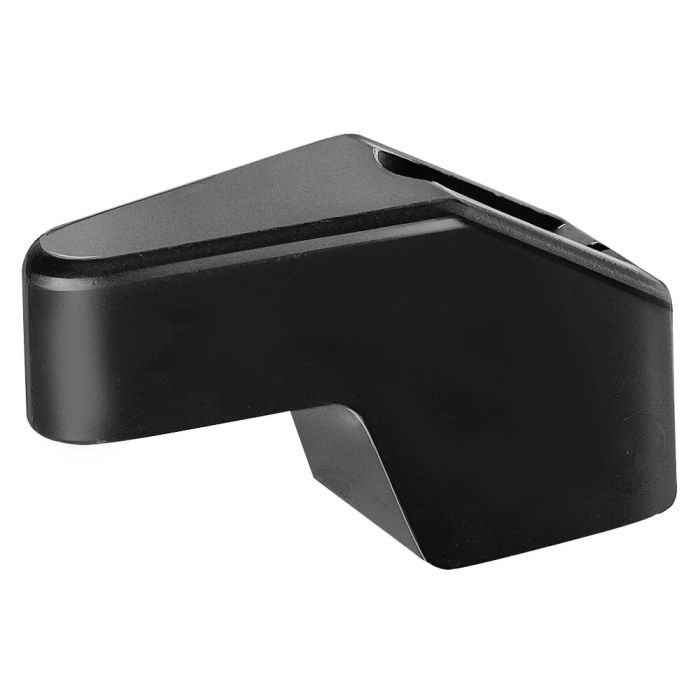

Swing Clamp Arm, upreach
For sizes 6951xx-05-xx, 6952CP-06-xx, 6941KP-03-xx
Order no.
69138
Design:
Tempered and blued steel.
Application:
For all swing clamps
order no. 69112 for sizes 6951xx-02-xx, 6952EP-02-xx
order no. 69138 for sizes 6951xx-05-xx, 6952CP-06-xx, 6941KP-03-xx
order no. 69153 for sizes 6951xx-11-xx, 6941KP-05-xx
Note:
Clamping pressure, flow volume and clamping arm weight must be observed. Special versions available on request.
| Order no. | 69138 |
|---|
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Swing Clamp, thread-flange-mounting Nr. 68734 Max. clamping force 5 kN, max. stroke 20 mm, double acting, right-pivoting
- Swing clamp, plug-in mounting Nr. 556954 Max. clamping force 6 kN, max. stroke 23 mm, double acting, right-pivoting
- Swing clamp, top-flange-mounting, precision design Nr. 327767 Max. clamping force 4,9 kN, max. stroke 20 mm, single acting, right-pivoting
- Swing clamp, base-flange-mounting, precision design Nr. 327817 Max. clamping force 4,9 kN, max. stroke 20 mm, single acting, right-pivoting
- Swing clamp, top-flange-mounting Nr. 556960 Max. clamping force 3,3 kN, max. piston force 4,1 kN, stroke 10,7 mm, right-pivoting
