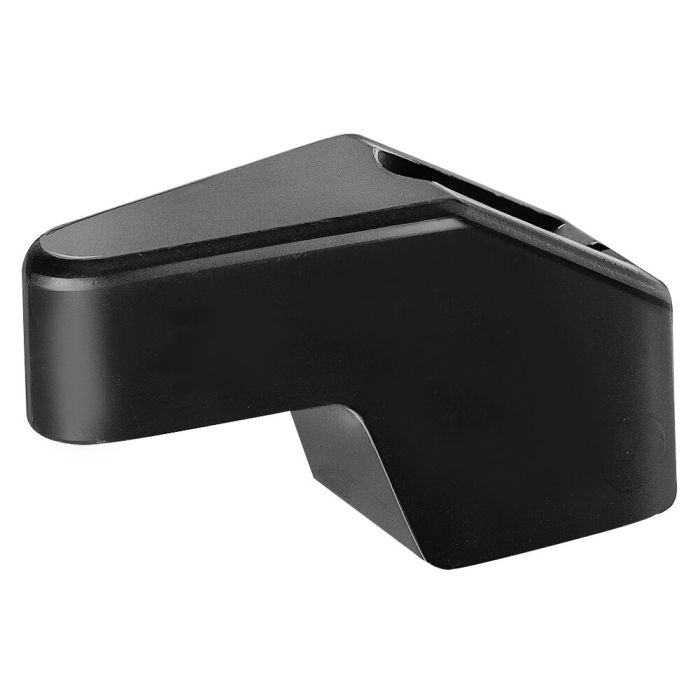

Swing Clamp Arm, upreach
For sizes 6951xx-22-xx, 6941KP-11-xx
Order no.
69500
Design:
Tempered and blued steel.
Application:
For swing clamps
order no. 69500 for sizes 6951xx-22-xx, 6941KP-11-xx
order no. 61879 for sizes 6951xx-33-xx
Note:
Clamping pressure, flow volume and clamping arm weight must be observed. Special versions available on request.
| Order no. | 69500 |
|---|
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Swing clamp, top-flange-mounting, precision design Nr. 327155 Max. clamping force 22 kN, max. stroke 28 mm, single acting, right-pivoting
- Swing clamp, top-flange-mounting, precision design Nr. 327197 Max. clamping force 22 kN, max. stroke 28 mm, double acting, right-pivoting
- Swing clamp, top-flange-mounting, precision design Nr. 327213 Max. clamping force 22 kN, max. stroke 45,5 mm, double acting, right-pivoting, long clamping stroke
- Swing clamp, base-flange-mounting, precision design Nr. 327270 Max. clamping force 22 kN, max. stroke 28 mm, single acting, right-pivoting
- Swing clamp, base-flange-mounting, precision design Nr. 327312 Max. clamping force 22 kN, max. stroke 28 mm, double acting, right-pivoting
