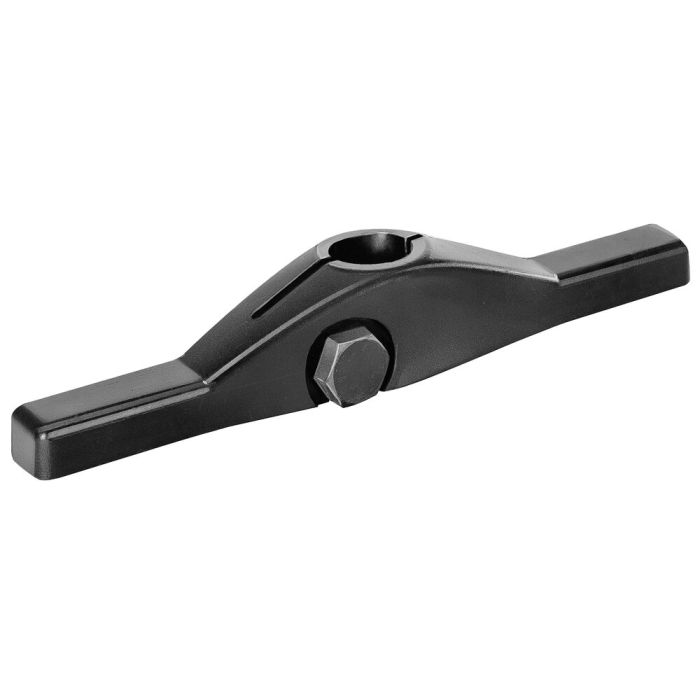

Swing Clamp Arm, double ended
For sizes 6951xx-22-xx, 6941KP-11-xx
Order no.
69526
Design:
Tempered and blued steel.
Application:
For swing clamps
order no. 69526 for sizes 6951xx-22-xx, 6941KP-11-xx
order no. 60863 for sizes 6951xx-33-xx
Note:
Clamping pressure, flow volume and clamping arm weight must be observed. Clamp arms can be shortened where necessary. It is also essential that clamping or support heights in either side are identical. Special versions available on request.
| Order no. | 69526 |
|---|
