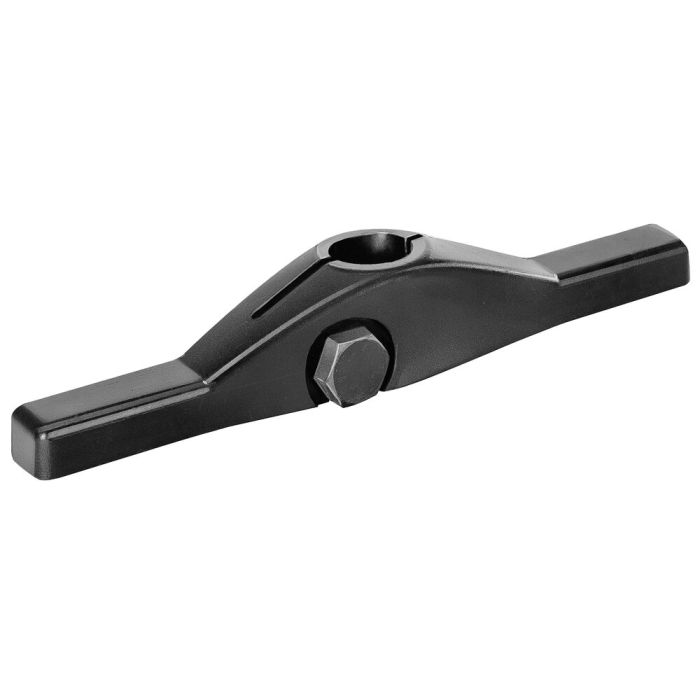

Swing Clamp Arm, double ended
For sizes 6951xx-33-xx
Order no.
60863
Design:
Tempered and blued steel.
Application:
For swing clamps
order no. 69526 for sizes 6951xx-22-xx, 6941KP-11-xx
order no. 60863 for sizes 6951xx-33-xx
Note:
Clamping pressure, flow volume and clamping arm weight must be observed. Clamp arms can be shortened where necessary. It is also essential that clamping or support heights in either side are identical. Special versions available on request.
| Order no. | 60863 |
|---|
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Swing clamp, top-flange-mounting, precision design Nr. 327171 Max. clamping force 33 kN, max. stroke 30 mm, single acting, right-pivoting
- Swing clamp, top-flange-mounting, precision design Nr. 327239 Max. clamping force 33 kN, max. stroke 30 mm, double acting, right-pivoting
- Swing clamp, top-flange-mounting, precision design Nr. 327254 Max. clamping force 33 kN, max. stroke 46 mm, double acting, right-pivoting, long clamping stroke
- Swing clamp, base-flange-mounting, precision design Nr. 327296 Max. clamping force 33 kN, max. stroke 30 mm, single acting, right-pivoting
- Swing clamp, base-flange-mounting, precision design Nr. 327338 Max. clamping force 33 kN, max. stroke 30 mm, double acting, right-pivoting
