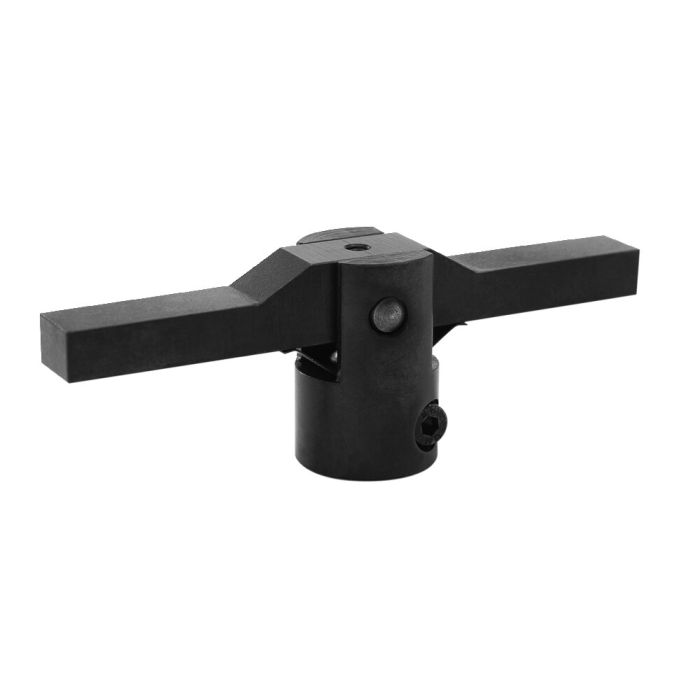

Swing Clamp arm, double-ended
For sizes 6951xx-33-xx
Order no.
320499
Design:
Steel, blued. Clamping arm tempered.
Application:
For all swing clamps
order no. 320481 for sizes 6951xx-22-xx
order no. 320499 for sizes 6951xx-33-xx
Used for clamping two workpieces with different heights.
Note:
Clamping pressure and maximum tilt angle (W) must not be exceeded. Special versions are available on request.
| Order no. | 320499 |
|---|
