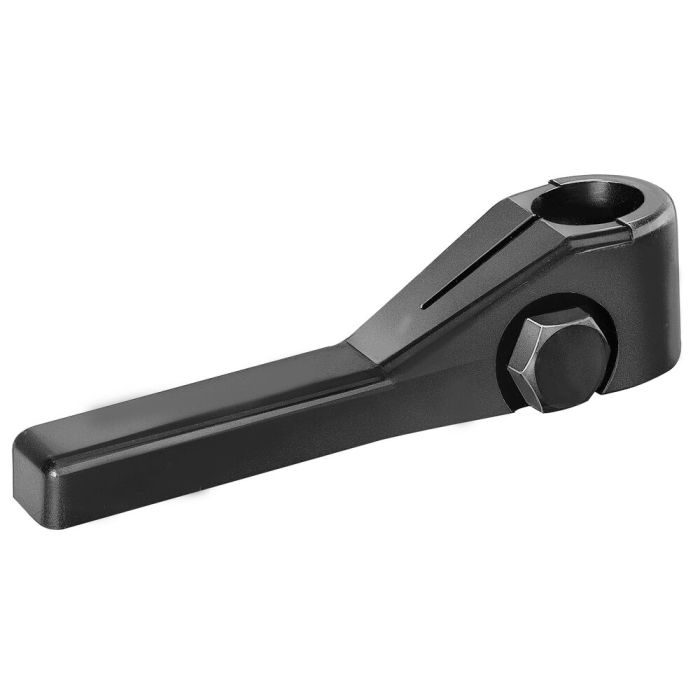

Swing Clamp Arm, long
For sizes 6951xx-33-xx
Order no.
60855
Design:
Tempered and blued steel.
Application:
For swing clamps
order no. 69161 for sizes 6951xx-22-xx, 6941KP-11-xx
order no. 60855 for sizes 6951xx-33-xx
Note:
Clamping pressure, flow volume and clamping arm weight must be observed. Clamp arms can be shortened where necessary. Special versions available on request.
| Order no. | 60855 |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Swing clamp, top-flange-mounting, precision design Nr. 327171 Max. clamping force 33 kN, max. stroke 30 mm, single acting, right-pivoting
- Swing clamp, top-flange-mounting, precision design Nr. 327239 Max. clamping force 33 kN, max. stroke 30 mm, double acting, right-pivoting
- Swing clamp, top-flange-mounting, precision design Nr. 327254 Max. clamping force 33 kN, max. stroke 46 mm, double acting, right-pivoting, long clamping stroke
- Swing clamp, base-flange-mounting, precision design Nr. 327296 Max. clamping force 33 kN, max. stroke 30 mm, single acting, right-pivoting
- Swing clamp, base-flange-mounting, precision design Nr. 327338 Max. clamping force 33 kN, max. stroke 30 mm, double acting, right-pivoting
