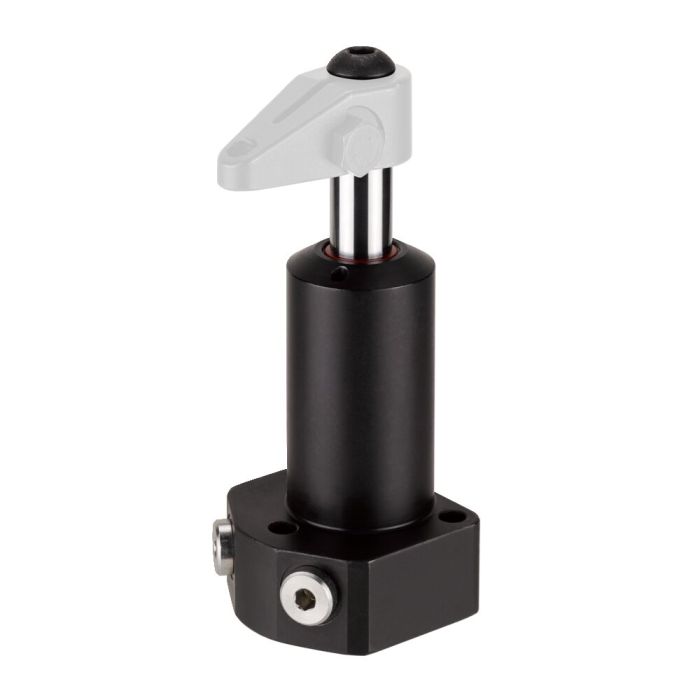

Swing clamp, base-flange-mounting, precision design

Design:
Cylinder barrel made of steel, hardened and burnished. Piston rod case hardened and chrome plated.
Piston rod with internal thread and clamp arm positioning. O-ring for flange seal.
Wiper on the piston rod. Clamp arm not supplied as standard. Oil supply via threaded connection or oil channel in the fixture body.

Application:
The swivel clamp is used in fixtures in which the workpiece must be freely accessible and inserted from above. Even workpieces with difficult shapes can be clamped using special clamp arms (available on request).

Features:
The swing motion is executed via three ball guides, thereby increasing positioning accuracy, repeat accuracy and service life.

Note:
The piston stoke is executed with spheres, so volume flow Q max. must be complied with. Clamping arm length and clamping arm weight must be strictly observed. No force may be applied to the piston when mounting accessories to it. To equalise height differences on the workpiece, the vertical clamping path must be 50% of the clamping stroke. When placing into operation, ensure that all air is bled from the system. To control the oil feed, the throttle/check valve no. 6916- 12 can be used as an option. To achieve a controlled clamping sequence, there is the option of screwing the sequence valve 6918-XX-XXX directly into the threaded connection. Other swivel angles are available on request.

Cl = clamping, Rel = release, ending of item no.: -21 = dual-action, right-pivoting / -22 = dual-action, left-pivoting / -210 = dual-action, right-pivoting, long clamping stroke / -220 = dual-action, left-pivoting, long clamping stroke

* details with clamp arm, standard
