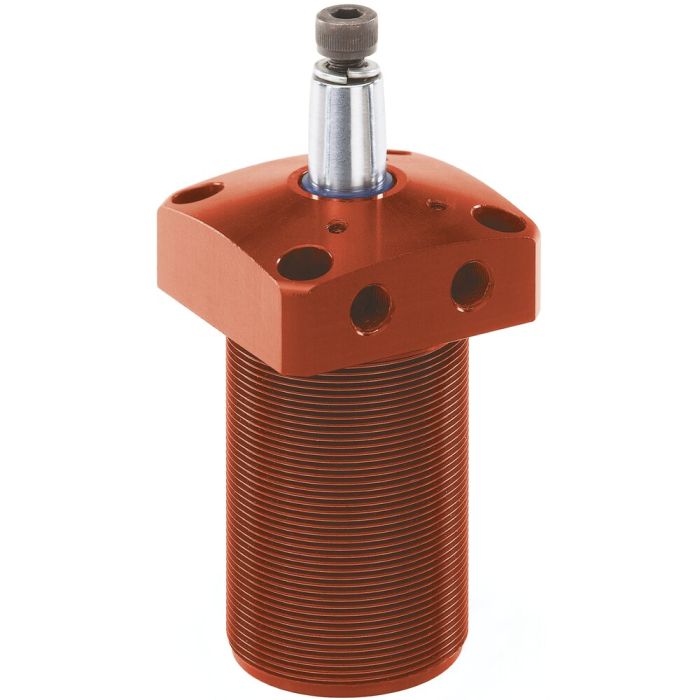

Swing clamp, pneumatic, flange-mounting version
Size 20, max. clamping force 0,08 kN, left swinging
Order no.
560020
Note:
The mounting holes in the flange are the same as in threaded flange no. 6828GF.
Operate only with lubricated air.
F3 = at 6 bar max. air pressure
* Swing clamps may only be loaded during the clamping stroke Y.
| Order no. | 560020 |
|---|---|
| Product type | Swing clamp |
| Max. clamping force [kN] | 0.08 |
| Größe Schnellspanner | 20 |
| Material | Aluminium, red anodised |
| Swing direction | Left swinging |
