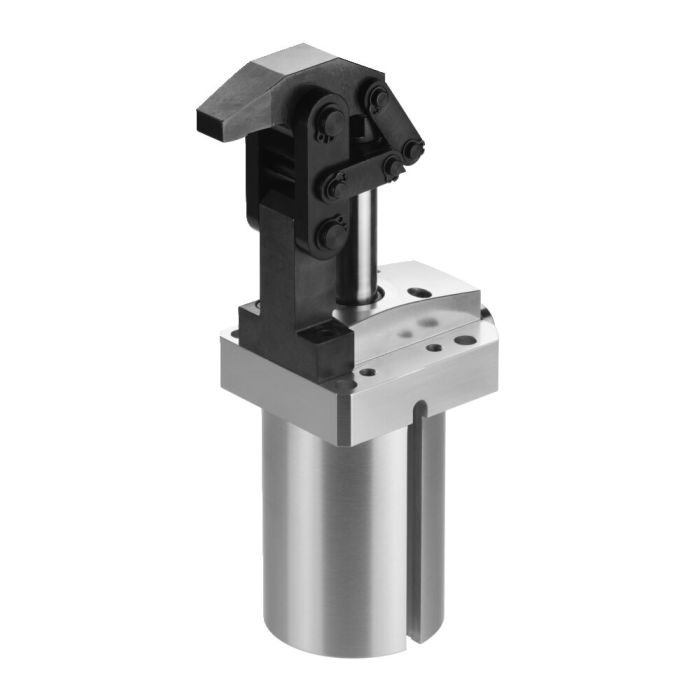

Link clamp, pneumatic, flange version
Application:
The special kinematics of the link clamp permits use in restricted spaces, such e.g. in clamping pockets or clamping slots.
In the opened state, the link clamp is very flat and so permits loading and unloading of the workpieces without disturbing contours.
Use is possible even in a material handling line, as workpieces or trays can be transported further collision-free without lifting.
Note:
Suitable proximity switches for end-position monitoring are available using order no. 392241.
Version: PUR cable 0.3 m with M8 plug connection and rotatable knurled nuts.
Switching function: NOC. Output: PNP.
F3 = at 6 bar max. permissible operating pressure
| Order no. | 569830 |
|---|---|
| Product type | Link clamp |
| Max. clamping force [kN] | 0.2 |
| Größe Schnellspanner | 25 |
| Material | Aluminium, red anodised |
