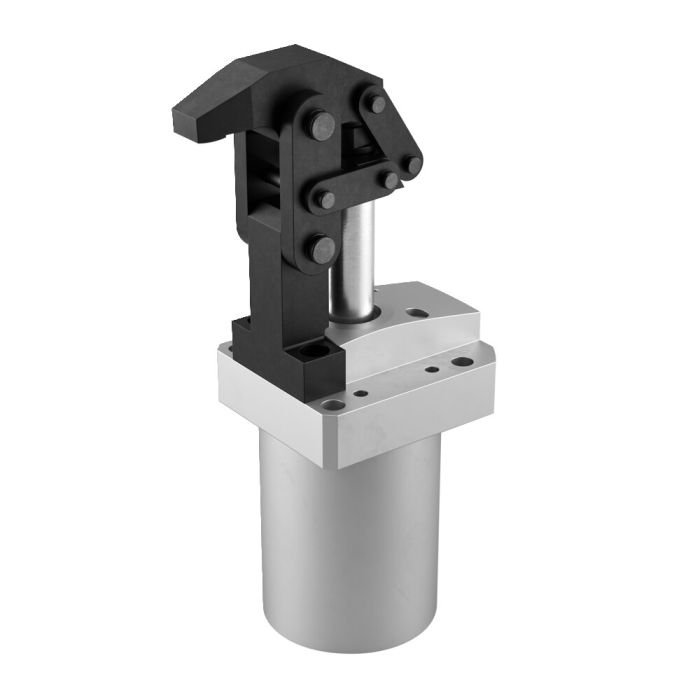

Link clamp, pneumatic, flange version
With lowerable clamp arm, size 25, max. clamping force 0,2 kN
Order no.
565859
Application:
The special kinematics of the link clamp permits use in restricted spaces, such as clamping in clamping pockets or clamping slots.
In the opened state, the link clamp is very flat and so permits loading and unloading of the workpieces without disturbing contours.
Use is possible even in a material handling line, as workpieces or trays can be transported further collision-free without lifting.
F3 = at 6 bar max. permissible operating pressure
| Order no. | 565859 |
|---|---|
| Product type | Link clamp |
| Max. clamping force [kN] | 0.2 |
| Größe Schnellspanner | 25 |
| Material | Aluminium, red anodised |
