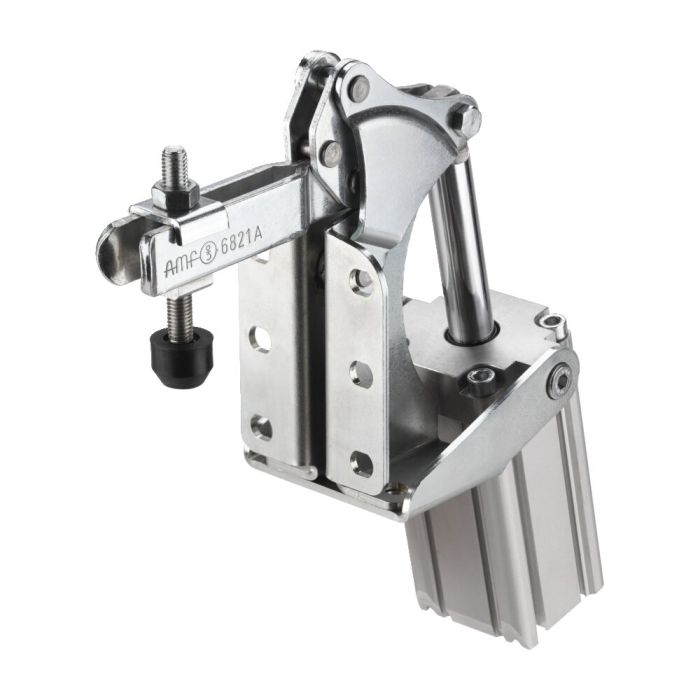

Pneumatic clamp
Size 2, max. clamping force 1,2 kN
Order no.
555065
Note:
Suitable proximity switches for end-position monitoring are available using order no. 392241. 0.3 m PUR cable with M8 connector and rotatable knurled nuts.
Switching function: NOC. Output: PNP.
F3 or. F4 = max. achievable clamping force at 6 bar.
Vn = air consumption per double stroke in dm³ at 6 bar.
| Order no. | 555065 |
|---|---|
| Product type | Vertical toggle clamp |
| Max. clamping force [kN] | 1.2 |
| Größe Schnellspanner | 2 |
| Material | Steel, galvanized |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
