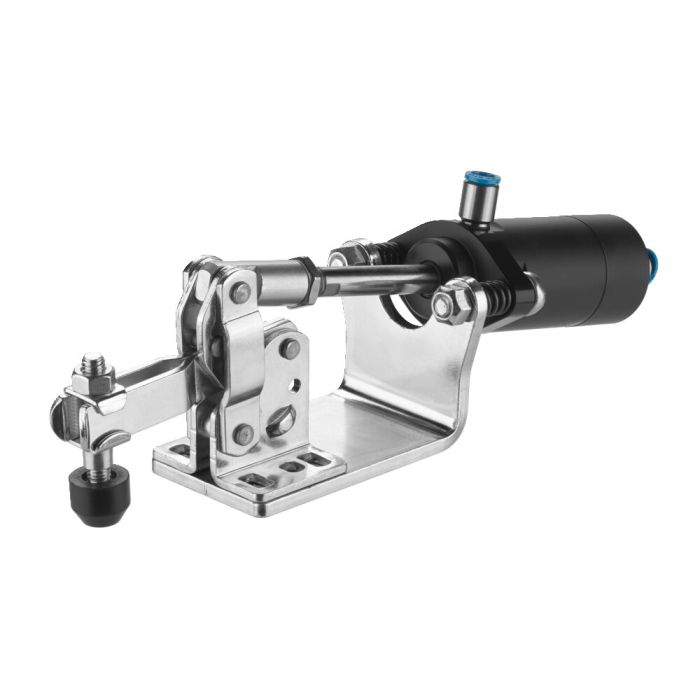

Pneumatic clamp
Size 0, max. clamping force 0,7 kN
Order no.
559791
F3 or. F4 = max. achievable clamping force at 6 bar.
Vn = air consumption per double stroke in dm³ at 6 bar.
Vn = air consumption per double stroke in dm³ at 6 bar.
| Order no. | 559791 |
|---|---|
| Product type | Vertical toggle clamp |
| Max. clamping force [kN] | 0.7 |
| Größe Schnellspanner | 0 |
| Material | Steel, galvanized |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
