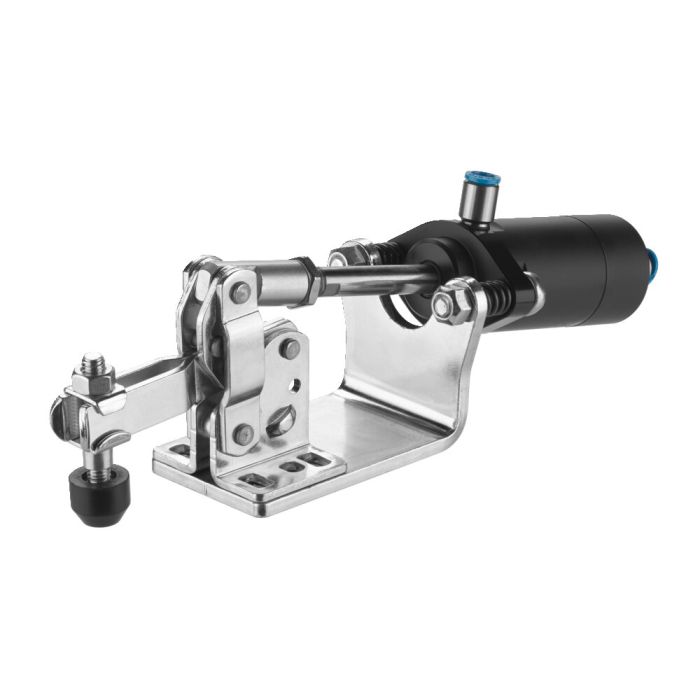

Pneumatic clamp
Size 1, max. clamping force 1,1 kN
Order no.
559792
F3 or. F4 = max. achievable clamping force at 6 bar.
Vn = air consumption per double stroke in dm³ at 6 bar.
Vn = air consumption per double stroke in dm³ at 6 bar.
| Order no. | 559792 |
|---|---|
| Product type | Vertical toggle clamp |
| Max. clamping force [kN] | 1.1 |
| Größe Schnellspanner | 1 |
| Material | Steel, galvanized |
