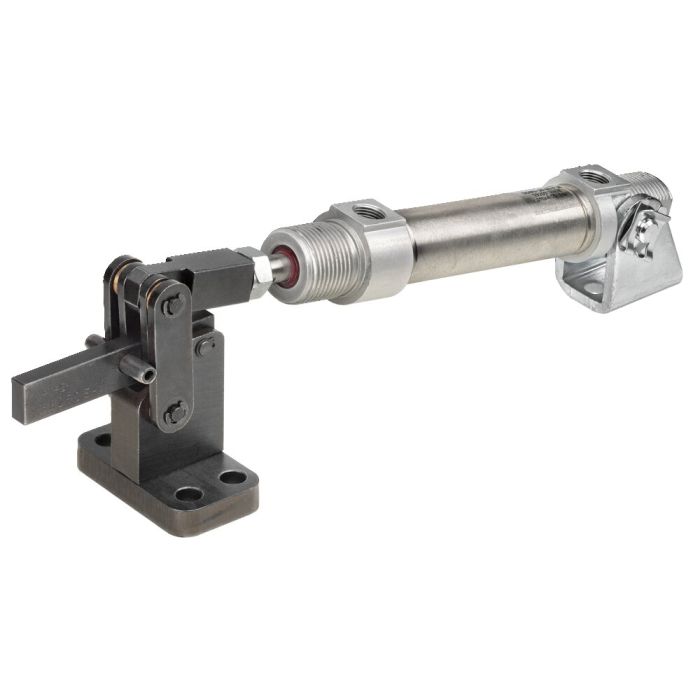

Heavy pneumatic toggle clamp
Size 0, max. clamping force 1 kN
Order no.
92106
Application:
These pneumatic toggle clamps are of machine tool quality and can be installed in machines such as material handling lines and special machines. Opening and clamping position of the clamp can be controlled electrically and can be intergrated into automated manufacturing.
Note:
Please enquire separately for suitable fastening kits and proximity switches for end position monitoring.
F3 or. F4 = max. achievable clamping force at 6 bar.
Vn = air consumption per double stroke in dm³ at 6 bar.
Piston dia. = Cylinder dia. required for piston force F5 at 6 bar air pressure.
| Order no. | 92106 |
|---|---|
| Product type | Vertical toggle clamp |
| Max. clamping force [kN] | 1 |
| Größe Schnellspanner | 0 |
| Material | Steel, burnished |
| Special features | Heavy-duty design |
