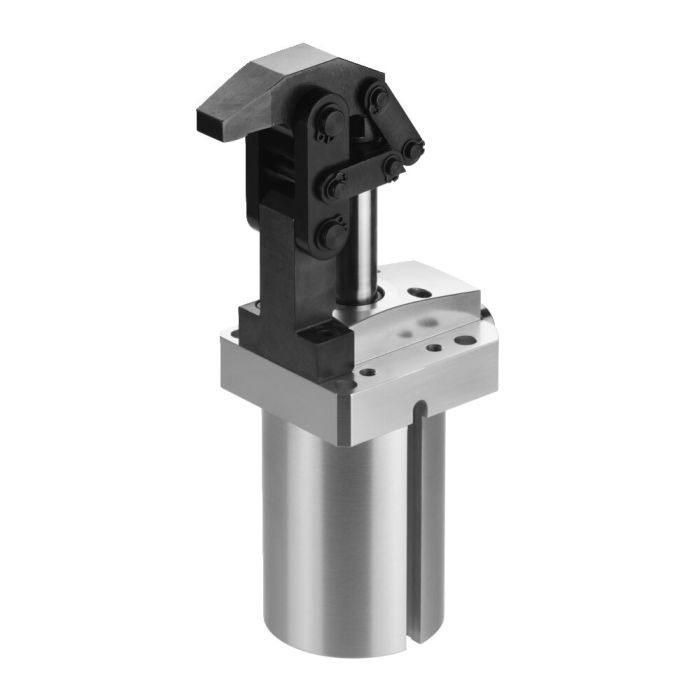

Link clamp, pneumatic, flange version
Application:
The special kinematics of the link clamp permits use in restricted spaces, such e.g. in clamping pockets or clamping slots.
In the opened state, the link clamp is very flat and so permits loading and unloading of the workpieces without disturbing contours.
Use is possible even in a material handling line, as workpieces or trays can be transported further collision-free without lifting.
Note:
Suitable proximity switches for end-position monitoring are available using order no. 392241.
Version: PUR cable 0.3 m with M8 plug connection and rotatable knurled nuts.
Switching function: NOC. Output: PNP.
F3 = at 6 bar max. permissible operating pressure
| Order no. | 569831 |
|---|---|
| Product type | Link clamp |
| Max. clamping force [kN] | 0.31 |
| Größe Schnellspanner | 32 |
| Material | Aluminium, red anodised |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
- Link clamp, pneumatic, flange version Nr. 565859 With lowerable clamp arm, size 25, max. clamping force 0,2 kN
-
- Pneumatic toggle clamp, double-acting Nr. 567170 Mini design in block version, size 10, clamping moment at 5 bar 2,5 Nm, max. holding moment 8 Nm
- Heavy pneumatic toggle clamp Nr. 565864 Size 40, clamping moment at 5 bar 120 Nm, max. holding moment 380 Nm
- Swing clamp, pneumatic, flange-mounting version Nr. 560012 Size 12, max. clamping force 0,03 kN, right swinging
- Swing clamp, pneumatic, block version Nr. 91496 Size 12, max. clamping force 0,03 kN, right swinging
- Swing clamp, pneumatic, screw-in version Nr. 560062 Size 12, max. clamping force 0,03 kN, right swinging
- Swing Clamp with welding protection, pneumatic Nr. 91579 Size 25, max. clamping force 0,2 kN, right swinging
