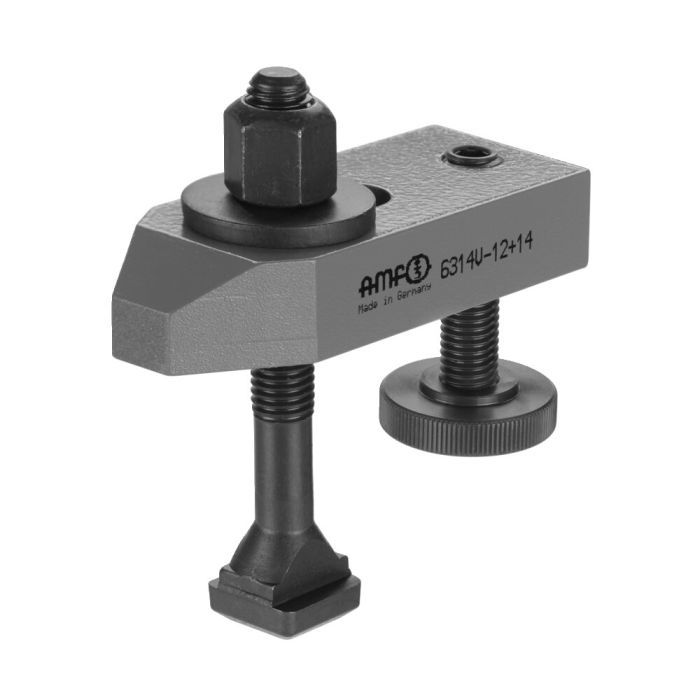

Tapered clamp with adjusting support screw, complete
Slot 22 mm, with clamping stud M20x22x160, clamping height 16-65 mm
Order no.
70318
*depending on depth of slot to DIN 650 and position of fixture nut.
Clamps without T-bolts are same item for sizes 12 and 14, 16 and 18, 20 and 22, each.
Clamps without T-bolts are same item for sizes 12 and 14, 16 and 18, 20 and 22, each.
| Order no. | 70318 |
|---|---|
| Spannschraube | With clamping bolt |
| Nut [mm] | 22 |
| Spannschraube metr. [M] | 20 |
| min. Spannhöhe [mm] | 16 |
| max. Spannhöhe [mm] | 65 |
| Weight [g] | 2770 |
