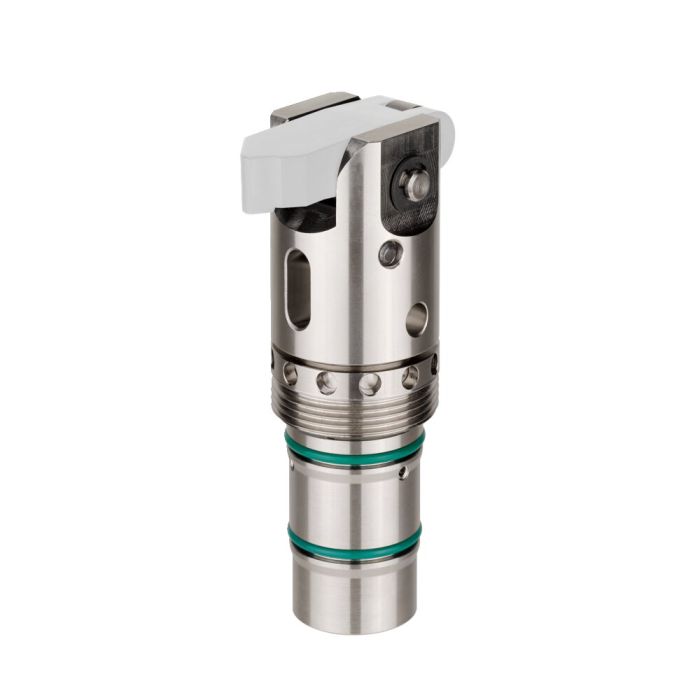

Vertical clamp, cartridge flange
Max. operating pressure 250 bar, max. piston force 17,5 kN, double acting
Order no.
328039
Design:
Case-hardening steel, case-hardened.
Application:
For vertical clamps 6958E and 6958EFT.
Note:
Clamping pressure, leverage, flow volume and clamp arm weight must always be observed.
*X1 = Lever length at 90°
| Order no. | 328039 |
|---|---|
| Product type | Vertical clamp |
| Max. operating pressure [bar] | 250 |
| Max. piston force [kN] | 17.5 |
| Type of actuation | Double acting |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Clamping arm out of steel Nr. 328062 For vertical clamp 6958E and 6958EFT, load lever 41 mm, max. clamping force 7,96 kN
- Clamping arm out of steel Nr. 328088 For vertical clamp 6958E and 6958EFT, load lever 51 mm, max. clamping force 6,4 kN
- Clamping arm out of steel Nr. 328104 For vertical clamp 6958E and 6958EFT, load lever 61 mm, max. clamping force 5,35 kN
Similar products
- Vertical clamp, flange design Nr. 570466 Max. operating pressure 250 bar, max. piston force 17,5 kN, double acting
