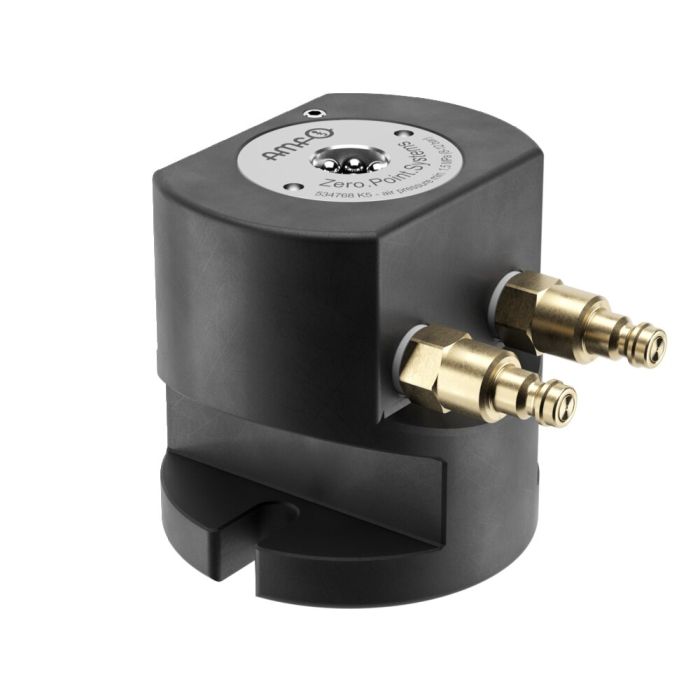

Adapter clamping module B10 to BP5, pneum.
Application:
The adapter element is used to reduce the intermediate element size B10 to the pneumatic clamping module BP5. Workpieces or fixtures can be clamped with repetition accuracy directly onto the pneumatic clamping module BP5 using pull-studs.
This clamping system can be used to move workpieces to the required machining height in the machine for 5-sided machining, or for the safe and quick clamping of workpieces with ledges and different clamping heights on the machine table.
Note:
Order no. for the centering sleeve Ø 15 mm: 535732
The pneum. quick-release coupling, connector version, and the fastening screws are supplied as standard.
* Please observe the installation instructions.
The clamping module has two connections:
1 = Pneum. opening
2 = Pneum. retensioning (turbo)
Advantage:
Simple, quick and flexible clamping of complex workpiece contours on the machine table. Especially suitable for levelling workpieces or clamping fixtures at the necessary machine heights in the machine tool and for the reliable clamping of same.
| Order no. | 534768 |
|---|---|
| Product type | Modular zero-point clamping system |
| Operating mode | Pneumatic |
| Size clamping module | 5 |
| Holding force [kN] | 13 |
| Pull-in/locking force [kN] | 1.5 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
- Pull-stud size 5 for M6 engagement screw Nr. 306019 For clamping modules size 5, zero point pull-stud
- Protective cap Nr. 563925 Protective cap for the connector on the pneumatic quick coupling with Order no. 430041
- Hose, pneumatic Nr. 430140 For the pneumatic connection of extension clamping modules or clamping stations
