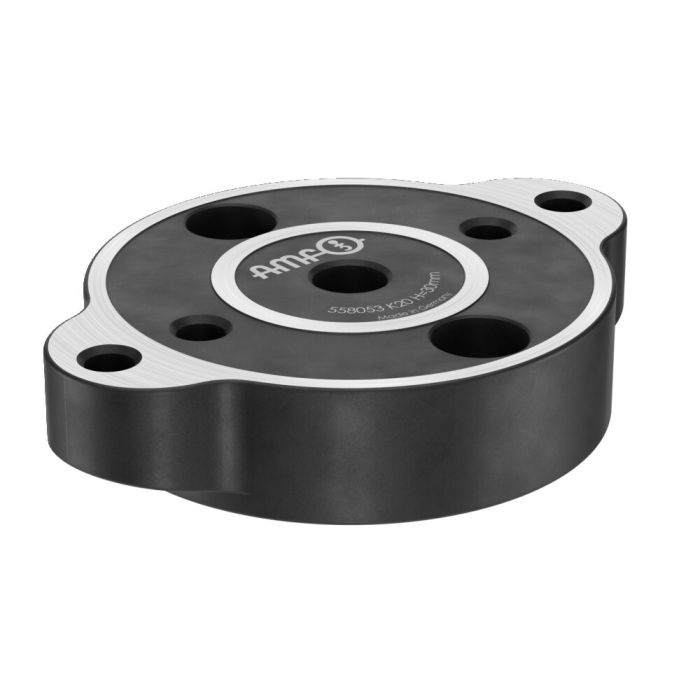

Adapter for height compensation
Application:
Adapter for installation of the height counterbalance element to an intermediate or base element.
Note:
The adapter can be aligned axially on the intermediate or base element using the centring sleeve and then bolted on.
The fastening bolts are supplied as standard.
Order numbers of the centring sleeves:
- size B10: order no. 535732 and 430223
- size B20: order no. 78006
Advantage:
Simple, quick and flexible clamping of complex workpiece contours on the machine table. Particularly suitable for levelling workpieces or clamping fixtures at the necessary machine heights in the machine tool for clamping these securely.
| Order no. | 558052 |
|---|---|
| Product type | Modular zero-point clamping system |
| Operating mode | Mechanical, Hydraulic, Pneumatic |
| Size clamping module | 10 |
