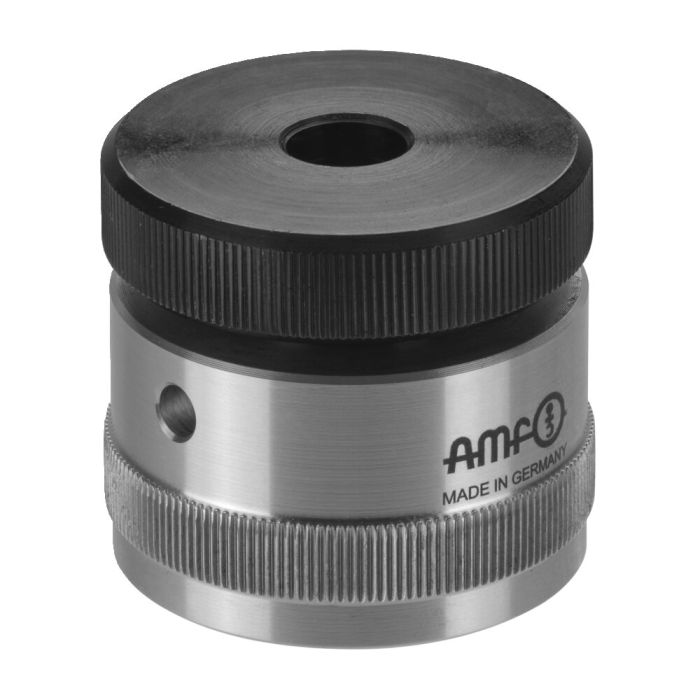

Aluminium screw jack
Size 70, centring hole Ø12 mm / M10, height 50-70 mm, ⌀ 50 mm
Order no.
75788
Application:
Protects the tables from precision machines (steel chips do no penetrate into the machine table, but into the aluminium base). Suitable for all machine tool tables as well as for guide and measuring plates with precision machined surfaces.
Note:
F max.* until max. 350 mm total height ensured. In addition, there is a risk of buckling.
Suitable attachments: no. 6440, 6440G, 6441, 6442, 6442G/M10, 6443/14 and 6445
Suitable support: no. 6401MF, 6401AF, 6400FB, 6400FY
Do not adjust screw jack under load!
Advantage:
Modular design with aluminium spacer elements 6401Z possible.
| Order no. | 75788 |
|---|---|
| Product type | Screw jack |
| Min. height [mm] | 50 |
| Max. height [mm] | 70 |
| Max. support force [kN] | 30 |
