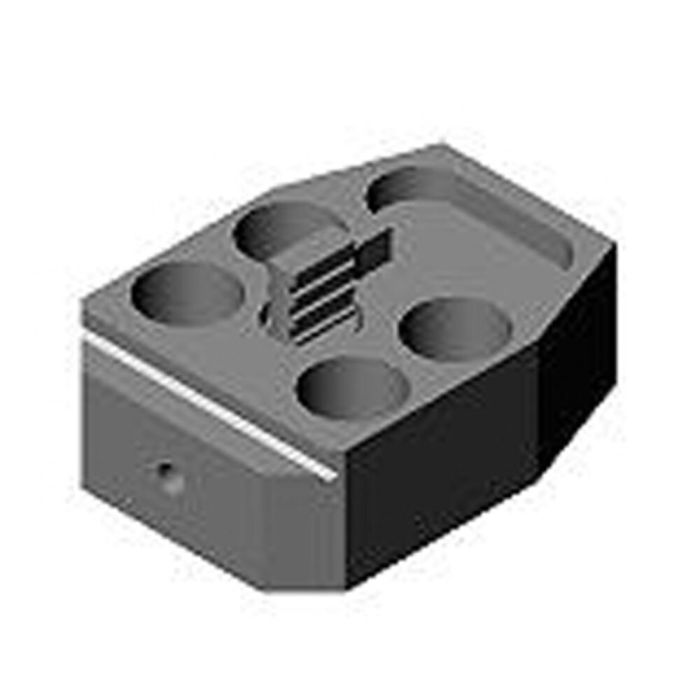

Base element with positioning holes
Screw M16
Order no.
78451
Application:
This element combines the functions of a swivelling foot element 7110FS-**-1 with those of a support-stop strip 6363-**-068. It is positioned on a grid using two centring sleeves 6363-**-005 or -031 and secured with 2 cap screws DIN912. The support height and distance from the location face to the positioning axis correspond to those of comparable 6363 positioning elements. Spacers and 7110 clamp elements built up on it can be swung through 20° from the body axis to accomodate special features of the workpiece.
| Order no. | 78451 |
|---|---|
| Type | 16 |
