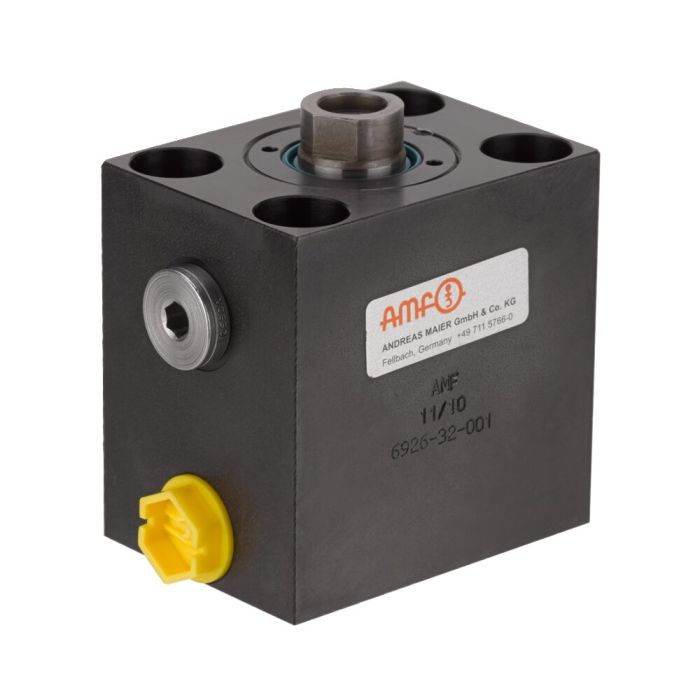

Block Cylinder
Design:
Cylinder barrel from steel, burnished. Piston and piston rod case hardened and ground. Wiper at piston rod. Piston rod with internal thread. Oil supply via threaded port.
Features:
Universal mounting by means of mounting holes. Each cylinder size is available with two different strokes.
Note:
Maximum traversing speed 0.5 m/s.
For single acting cylinder types there is a risk of sucking coolant at the return stroke. In this case the sinter metal breather shall be piped to a clean, protected area. Screws of strength class 12.9 must be used for fastening.
Untoleranced dimensions are to DIN ISO 2768 medium.
On request:
Special sizes are available on request.
| Order no. | 63354 |
|---|---|
| Max. clamping force [kN] | 10 |
| Max. operating pressure [bar] | 500 |
| Type of actuation | Single acting |
| Stroke [mm] | 8 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
- Quick Disconnect Coupler Nr. 69021 Sleeve with external thread, max. operating pressure 1000 bar, nominal size 2,5
- High Pressure Hose with steel-wire interlace Nr. 68551 For thread connection, max. operating pressure 500 bar, length 300 mm
- Block Cylinder Nr. 63511 Max. operating pressure 500 bar, max. clamping force 10 kN, max. stroke 8 mm, single acting
- Block Cylinder Nr. 62034 Max. operating pressure 500 bar, max. clamping force 10 kN, max. stroke 16 mm, double acting
- Block Cylinder Nr. 62067 Max. operating pressure 500 bar, max. clamping force 10 kN, max. stroke 16 mm, double acting
- Block cylinder with O-ring connection on side Nr. 476895 Max. operating pressure 500 bar, max. clamping force 10 kN, max. stroke 16 mm, double acting
- Block cylinder with O-ring connection on base Nr. 454793 Max. operating pressure 500 bar, max. clamping force 10 kN, max. stroke 16 mm, double acting
- Block cylinder with O-ring connection on rod side Nr. 349696 Max. operating pressure 500 bar, max. clamping force 10 kN, max. stroke 16 mm, double acting
- Block Cylinder Nr. 68023 Max. operating pressure 350 bar, max. clamping force 10,1 kN, max. stroke 6,5 mm, single acting
