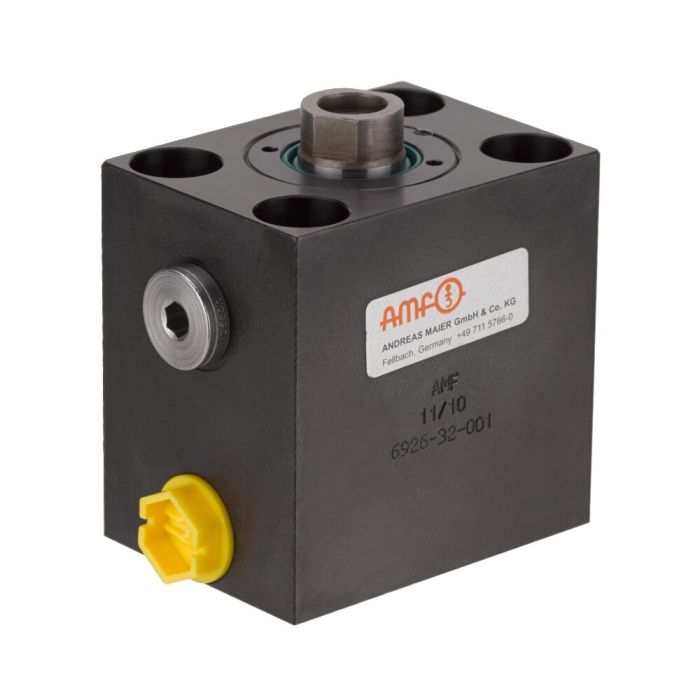

Block Cylinder
Design:
Cylinder barrel from steel, burnished. Piston and piston rod case hardened and ground. Wiper at piston rod. Piston rod with internal thread. Oil supply via threaded port.
Features:
Universal mounting by means of mounting holes. Each cylinder size is available with two different strokes.
Note:
Maximum traversing speed 0.5 m/s.
For single acting cylinder types there is a risk of sucking coolant at the return stroke. In this case the sinter metal breather shall be piped to a clean, protected area. Screws of strength class 12.9 must be used for fastening.
Untoleranced dimensions are to DIN ISO 2768 medium.
On request:
Special sizes are available on request.
| Order no. | 63453 |
|---|---|
| Max. clamping force [kN] | 98 |
| Max. operating pressure [bar] | 500 |
| Type of actuation | Single acting |
| Stroke [mm] | 12 |
