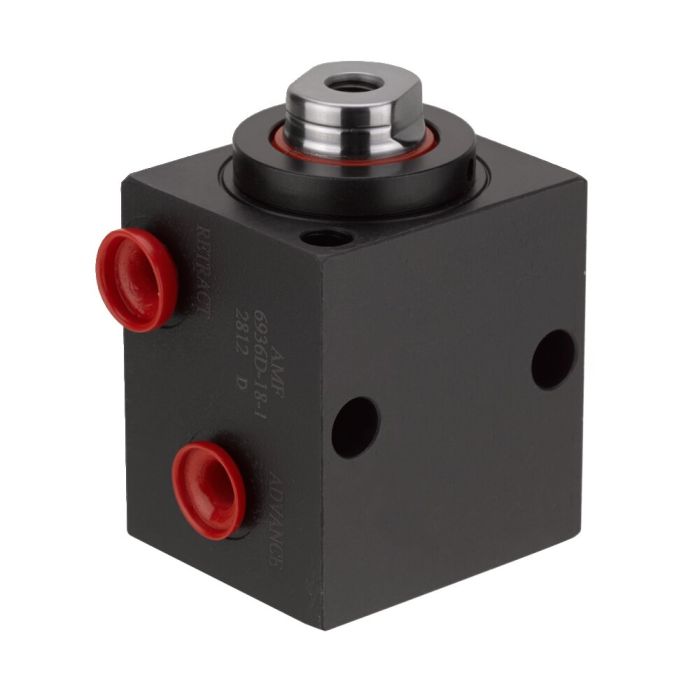

Block Cylinder
Design:
Cylinder housing made of steel, hardened and blued. Piston and piston rod with internal thread, case-hardened and ground. Wiper at piston rod prevents from contamination.
Application:
Universal mounting to equipment using mounting holes. Universal element clamping, pressurising, riveting and punching.
Features:
Different strokes are available for each cylinder size. Every model is furnished with parallel and perpendicular mounting holes. Tapped piston rod ends allow the use of custom end attachments.
Note:
When placing into operation, ensure that all air is bled from the system. For applications above 100 bar operating pressure, the cylinders must be supported by the cross bores at the cylinder body when fastening. Screws of strength class 12.9 must be used for fastening.
VH = work stroke, RH = back stroke
| Order no. | 68296 |
|---|---|
| Max. clamping force [kN] | 39.9 |
| Max. operating pressure [bar] | 350 |
| Type of actuation | Double acting |
| Stroke [mm] | 51 |
