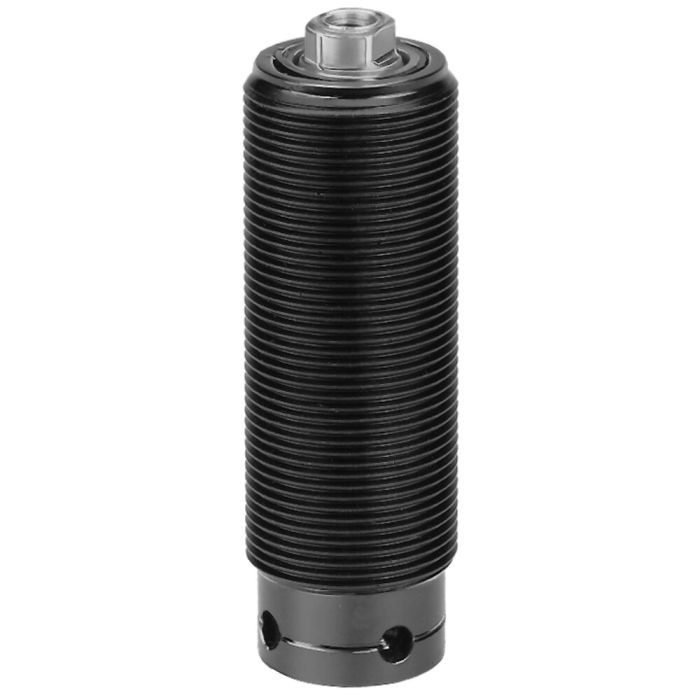

Built-In Cylinder
Design:
Cylinder barrel from steel, hardened and burnished. Piston and piston rod case hardened and ground. Piston rod with internal thread. Wiper at piston rod. Cylinder barrel with metric fine thread for locknut to DIN 70852. Oil supply via threaded port.
Application:
Suitable to convert mechanical fixtures into hydraulic operated. The built-in cylinder can easily be mounted and adjusted into fixture walls by flange nuts. Universal cylinder for clamping, pushing, locking, rivetting and punching.
Features:
The metric thread extending over the whole length of the cylinder permits with its two flange nuts DIN 70852 lengthwise adjustment over a large range. Tapped piston rod end allows the use of individual contact bolts.
Note:
The system has to be completely vented during installation.
VH = work stroke, RH = back stroke
| Order no. | 67801 |
|---|---|
| Max. clamping force [kN] | 10.1 |
| Max. operating pressure [bar] | 350 |
| Type of actuation | Single acting |
| Stroke [mm] | 19 |
