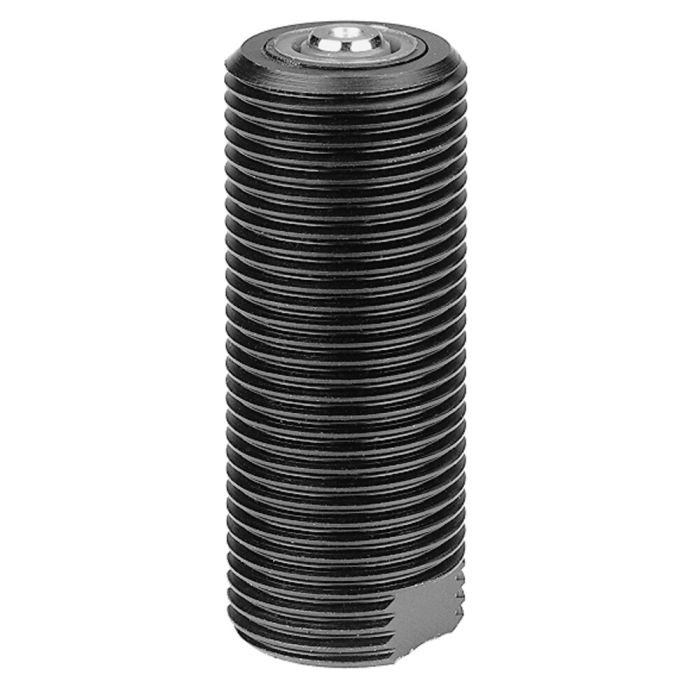

Built-In Cylinder
Design:
Cylinder barrel from steel, hardened and burnished. Piston and piston rod case hardened and ground. Piston rod with internal thread. Wiper at piston rod. Cylinder barrel with metric fine thread for locknut to DIN 70852. Return spring from stainless steel. Oil supply via threaded port.
Application:
Suitable to convert mechanical fixtures into hydraulic operated. The built-in cylinder can easily be mounted and adjusted into fixture walls by grooved nuts. Universal cylinder for clamping, pushing, locking and rivetting.
Features:
The metric thread extending over the whole length of the cylinder permits with its two flange nuts DIN 70852 lengthwise adjustment over a large range. Tapped piston rod end allows the use of individual contact bolts.
| Order no. | 68015 |
|---|---|
| Max. clamping force [kN] | 4.4 |
| Max. operating pressure [bar] | 350 |
| Type of actuation | Single acting |
| Stroke [mm] | 32 |
