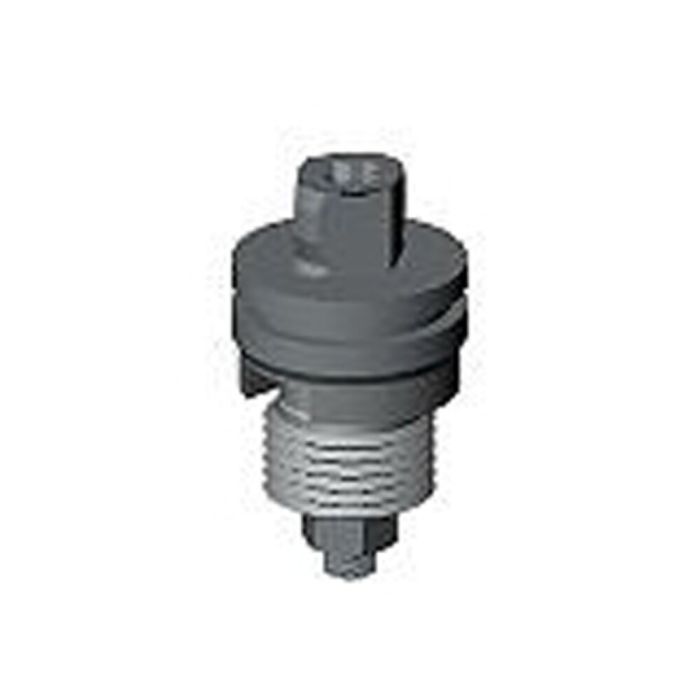

Centring pin, relieved square

Dia. outside 22 mm, dia. inside 12 mm, length 40 mm

Order no.

88625

Order no.	Article no.	dia. D ±0.01	dia. D1 h6	A	b	L	m	SW	o-ring	Weight [g]
88625	6363-16-059-12	22	12	7,5-1	2,9	40	M16	9	18,77x1,78	57
88633	6363-16-059-16	22	16	7,5-1	3,7	40	M16	12	18,77x1,78	61
88708	6363-12-059-10	16	10	7,5-1	2,5	35	M12	8	12,42x1,78	25
88716	6363-12-059-12	16	12	7,5-1	2,9	35	M12	9	12,42x1,78	27

Application:
For workpiece mounting in positioning holes, for example, for a second clamping.

More Information
Order no.	88625

CAD

If you are missing a download, please write to us using our contact form.

Area	Language	File name	Type	File size

For general downloads, such as catalogs and brochures, please click here.

Similar products

Centring pin, round Nr. 88682 Dia. outside 22 mm, dia. inside 12 mm, length 36 mm
