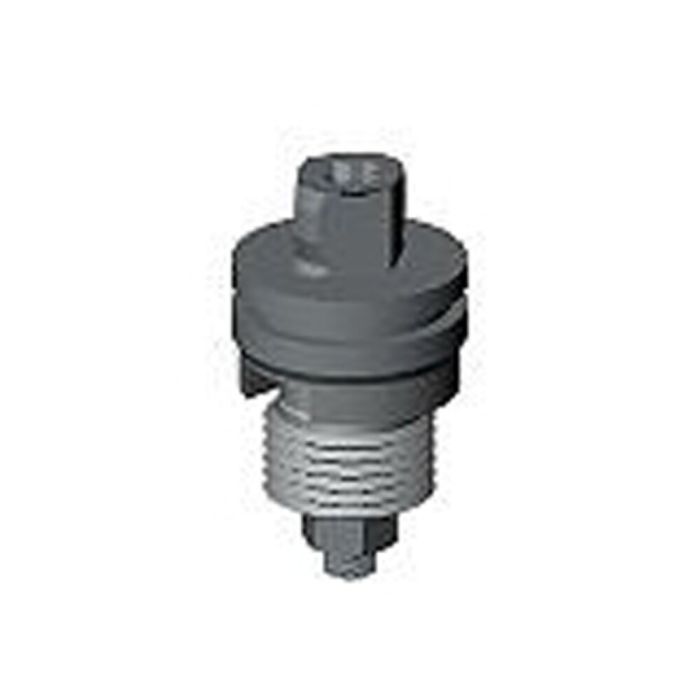

Centring pin, relieved square
Dia. outside 16 mm, dia. inside 10 mm, length 35 mm
Order no.
88708
Application:
For workpiece mounting in positioning holes, for example, for a second clamping.
| Order no. | 88708 |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Support centring pin Nr. 88641 Dist. fr. face to loc. holes 16 mm, support height 30 mm, dia. outside 30 mm, dia. inside 16 mm
