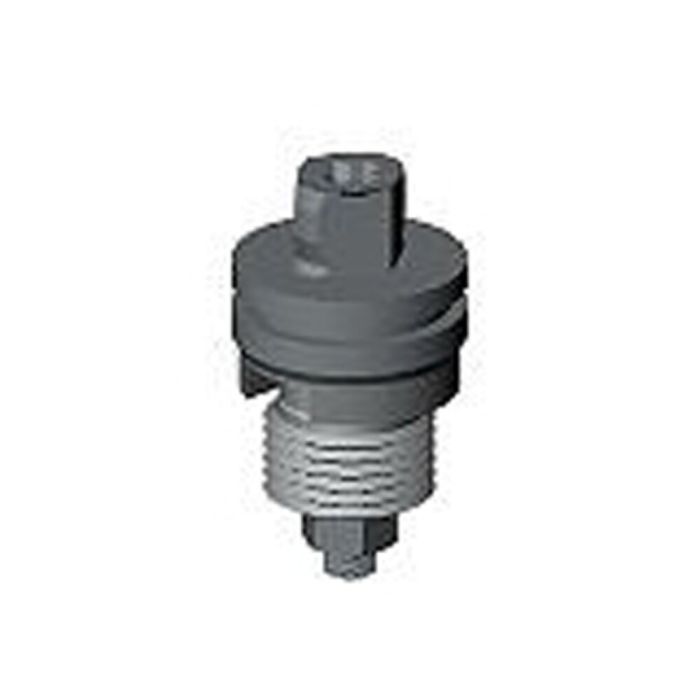

Centring pin, relieved square

Dia. outside 16 mm, dia. inside 12 mm, length 35 mm

Order no.

88716

Order no.	Article no.	dia. D ±0.01	dia. D1 h6	A	b	L	m	SW	o-ring	Weight [g]
88625	6363-16-059-12	22	12	7,5-1	2,9	40	M16	9	18,77x1,78	57
88633	6363-16-059-16	22	16	7,5-1	3,7	40	M16	12	18,77x1,78	61
88708	6363-12-059-10	16	10	7,5-1	2,5	35	M12	8	12,42x1,78	25
88716	6363-12-059-12	16	12	7,5-1	2,9	35	M12	9	12,42x1,78	27

Application:
For workpiece mounting in positioning holes, for example, for a second clamping.
