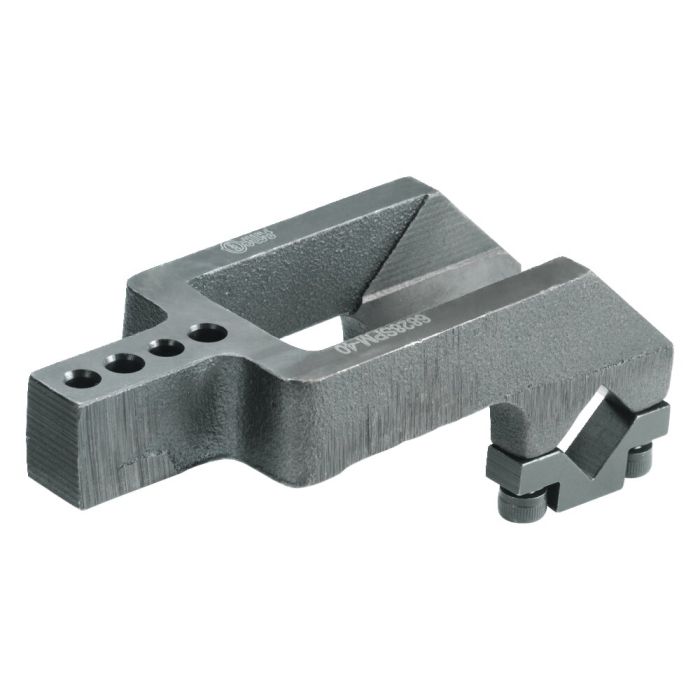

Clamp arm
For heavy pneumatic toggle clamp no. 6828U, size 40, clamp arm in the middle
| Order no. | Size | Article no. | A -0.1 | A1 ±0.1 | A2 | A3 | b | B1 ±0,02 | B2 ±0,2 | B3 ±0,1 | dia. D
| Weight
[g] | Availability | Your Price |
| 91900 | 40 | 6828SPM-40 | 16 | - | - | 54 | 117 | 20 | 20 | 90 | 7 | 520 | | |
| 91959 | 50 | 6828SPM-50 | 20 | - | - | 68 | 144 | 30 | 30 | 105 | 9 | 855 | | |
| 92007 | 40 | 6828SPR-40 | 16 | 23 | 31 | 54 | 117 | 20 | 20 | 90 | 7 | 520 | | |
| 92056 | 50 | 6828SPR-50 | 20 | 34 | 44 | 68 | 144 | 30 | 30 | 105 | 9 | 855 | | |
| 92072 | 50 | 6828SPL-50 | 20 | 34 | 44 | 68 | 144 | 30 | 30 | 105 | 9 | 855 | | |
| 92080 | 40 | 6828SPL-40 | 16 | 23 | 31 | 54 | 117 | 20 | 20 | 90 | 7 | 520 | | |
| 92098 | 63 | 6828SPM-63 | 20 | - | - | 78 | 144 | 30 | 30 | 105 | 9 | 1150 | | |
| 92114 | 63 | 6828SPR-63 | 20 | 37 | 47 | 78 | 144 | 30 | 30 | 105 | 9 | 1150 | | |
| 92130 | 63 | 6828SPL-63 | 20 | 37 | 47 | 78 | 144 | 30 | 30 | 105 | 9 | 1150 | | |
| | | | | | | | | | | | | | |
More Information | Order no. | 91900 |
|---|
| Product type | Vertical toggle clamp |
|---|
| Größe Schnellspanner | 40 |
|---|
| Special features | Heavy-duty design |
|---|
