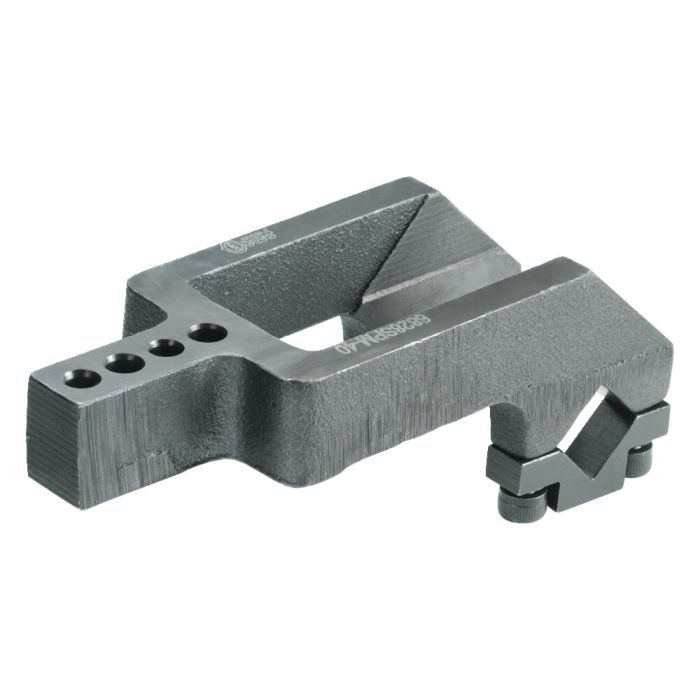

Clamp arm
For heavy pneumatic toggle clamp no. 6828U, size 50, clamp arm left
| Order no. | Size | Article no. | A -0.1 | A1 ±0.1 | A2 | A3 | b | B1 ±0,02 | B2 ±0,2 | B3 ±0,1 | dia. D
| Weight
[g] | Availability | Your Price |
| 91900 | 40 | 6828SPM-40 | 16 | - | - | 54 | 117 | 20 | 20 | 90 | 7 | 520 | | |
| 91959 | 50 | 6828SPM-50 | 20 | - | - | 68 | 144 | 30 | 30 | 105 | 9 | 855 | | |
| 92007 | 40 | 6828SPR-40 | 16 | 23 | 31 | 54 | 117 | 20 | 20 | 90 | 7 | 520 | | |
| 92056 | 50 | 6828SPR-50 | 20 | 34 | 44 | 68 | 144 | 30 | 30 | 105 | 9 | 855 | | |
| 92072 | 50 | 6828SPL-50 | 20 | 34 | 44 | 68 | 144 | 30 | 30 | 105 | 9 | 855 | | |
| 92080 | 40 | 6828SPL-40 | 16 | 23 | 31 | 54 | 117 | 20 | 20 | 90 | 7 | 520 | | |
| 92098 | 63 | 6828SPM-63 | 20 | - | - | 78 | 144 | 30 | 30 | 105 | 9 | 1150 | | |
| 92114 | 63 | 6828SPR-63 | 20 | 37 | 47 | 78 | 144 | 30 | 30 | 105 | 9 | 1150 | | |
| 92130 | 63 | 6828SPL-63 | 20 | 37 | 47 | 78 | 144 | 30 | 30 | 105 | 9 | 1150 | | |
| | | | | | | | | | | | | | |
More Information | Order no. | 92072 |
|---|
| Product type | Vertical toggle clamp |
|---|
| Größe Schnellspanner | 50 |
|---|
| Special features | Heavy-duty design |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size | |
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Similar products
Clamp arm Nr. 91959 For heavy pneumatic toggle clamp no. 6828U, size 50, clamp arm in the middle
Clamp arm Nr. 92056 For heavy pneumatic toggle clamp no. 6828U, size 50, clamp arm right
