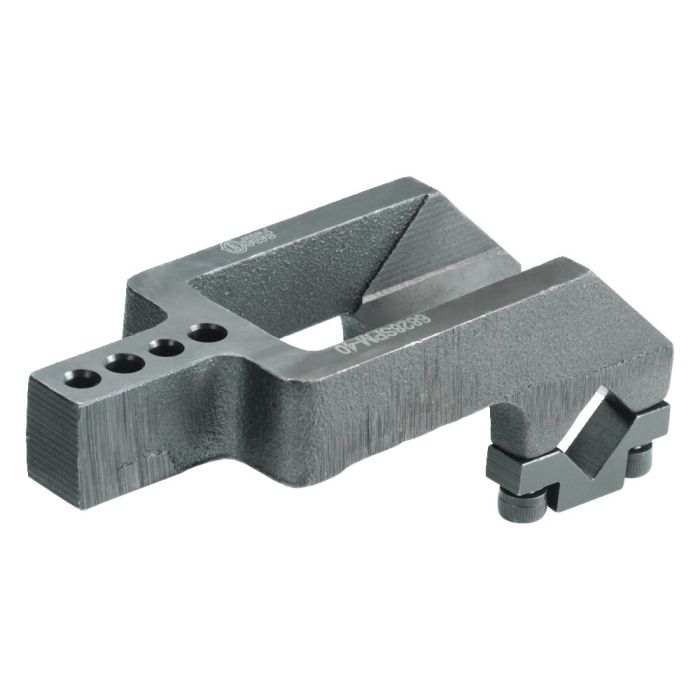

Clamp arm
For heavy pneumatic toggle clamp no. 6828U, size 40, clamp arm right
| Order no. | Size | Article no. | A -0.1 | A1 ±0.1 | A2 | A3 | b | B1 ±0,02 | B2 ±0,2 | B3 ±0,1 | dia. D
| Weight
[g] | Availability | Your Price |
| 91900 | 40 | 6828SPM-40 | 16 | - | - | 54 | 117 | 20 | 20 | 90 | 7 | 520 | | |
| 91959 | 50 | 6828SPM-50 | 20 | - | - | 68 | 144 | 30 | 30 | 105 | 9 | 855 | | |
| 92007 | 40 | 6828SPR-40 | 16 | 23 | 31 | 54 | 117 | 20 | 20 | 90 | 7 | 520 | | |
| 92056 | 50 | 6828SPR-50 | 20 | 34 | 44 | 68 | 144 | 30 | 30 | 105 | 9 | 855 | | |
| 92072 | 50 | 6828SPL-50 | 20 | 34 | 44 | 68 | 144 | 30 | 30 | 105 | 9 | 855 | | |
| 92080 | 40 | 6828SPL-40 | 16 | 23 | 31 | 54 | 117 | 20 | 20 | 90 | 7 | 520 | | |
| 92098 | 63 | 6828SPM-63 | 20 | - | - | 78 | 144 | 30 | 30 | 105 | 9 | 1150 | | |
| 92114 | 63 | 6828SPR-63 | 20 | 37 | 47 | 78 | 144 | 30 | 30 | 105 | 9 | 1150 | | |
| 92130 | 63 | 6828SPL-63 | 20 | 37 | 47 | 78 | 144 | 30 | 30 | 105 | 9 | 1150 | | |
| | | | | | | | | | | | | | |
More Information | Order no. | 92007 |
|---|
| Product type | Vertical toggle clamp |
|---|
| Größe Schnellspanner | 40 |
|---|
| Special features | Heavy-duty design |
|---|
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size | |
Similar products
Clamp arm Nr. 92080 For heavy pneumatic toggle clamp no. 6828U, size 40, clamp arm left
Clamp arm Nr. 91900 For heavy pneumatic toggle clamp no. 6828U, size 40, clamp arm in the middle
