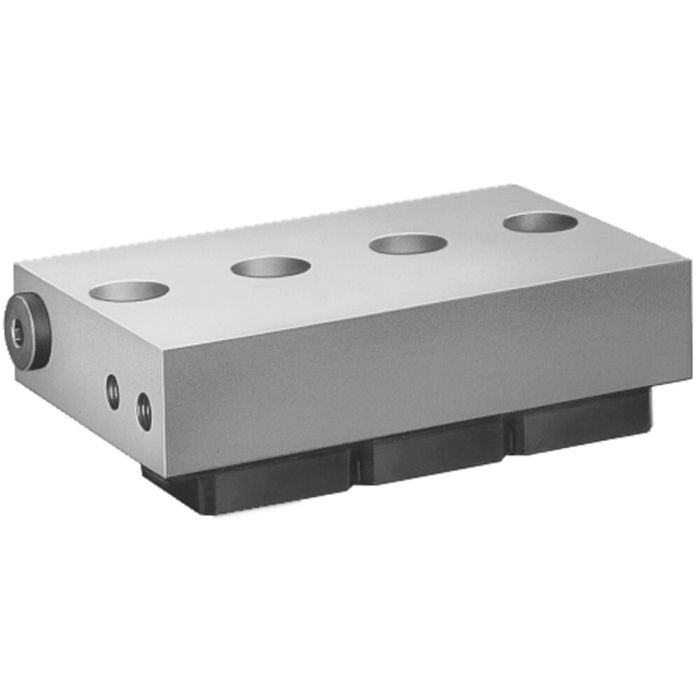

Clamping Bar, short
Max. operating pressure 400 bar, max. clamping force 60 kN, stroke 6 mm, single acting, 1 clamping circuit
Order no.
61085
Design:
Cylinder body made of tempering steel, phosphated. Piston case-hardened and ground, built-in return spring, with stroke limitation.
Application:
For quick clamping and unclamping on press table or ram. Suitable for workpieces with uniform clamping rim. The clamping bar is bolted with a spacer bar directly onto the press table or ram. Suitable spacer bars are No. 6945-22-04, -06, -07, -08.
On request:
Special sizes available on request.
| Order no. | 61085 |
|---|---|
| Product type | Clamping bars |
| Max. clamping force [kN] | 60 |
