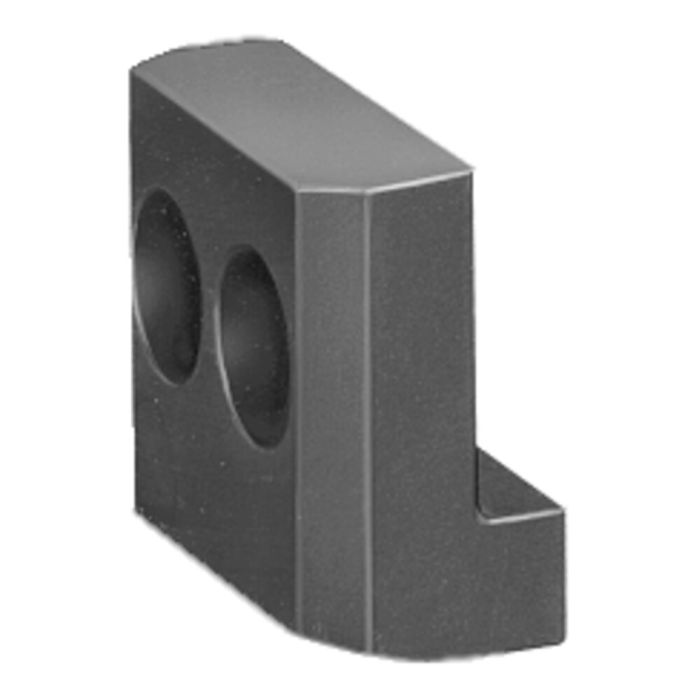

Front Insertion Guide
For safe guidance of die pallet into press
Order no.
61077
Design:
Tempering steel, blued and hardened. Mounting bolts supplied.
Application:
For safe guidance of die pallet into press. This guide protects the clamping pistons in the clamping bar.
| Order no. | 61077 |
|---|---|
| Product type | Clamping elements |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Clamping Bar, short Nr. 61085 Max. operating pressure 400 bar, max. clamping force 60 kN, stroke 6 mm, single acting, 1 clamping circuit
- Clamping Bar, long Nr. 61689 Max. operating pressure 400 bar, max. clamping force 2x60 kN, stroke 6 mm, single acting
- Clamping Bar, long Nr. 61630 Max. operating pressure 400 bar, max. clamping force 1x120 kN, stroke 6 mm, single acting
- Clamping Bar, long Nr. 61622 Max. operating pressure 400 bar, max. clamping force 2x80 kN, stroke 6 mm, single acting
- Clamping Bar, long Nr. 61697 Max. operating pressure 400 bar, max. clamping force 1x160 kN, stroke 6 mm, single acting
