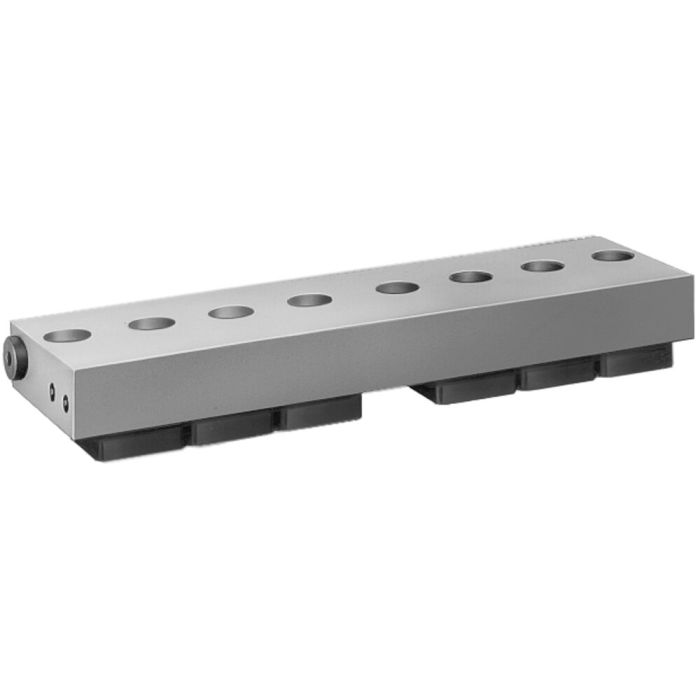

Clamping Bar, long
Max. operating pressure 400 bar, max. clamping force 1x120 kN, stroke 6 mm, single acting
Order no.
61630
Design:
Cylinder body made of tempering steel, phosphated. Piston case-hardened and ground, built-in return spring, with stroke limitation.
Application:
For quick clamping and unclamping on press table or ram. Suitable for workpieces with uniform clamping rim. The clamping bar is bolted with a spacer bar directly onto the press table or press ram. Suitable spacer bar is No. 6945-22-07.
On request:
Special sizes available on request.
| Order no. | 61630 |
|---|---|
| Product type | Clamping bars |
| Max. clamping force [kN] | 120 |
