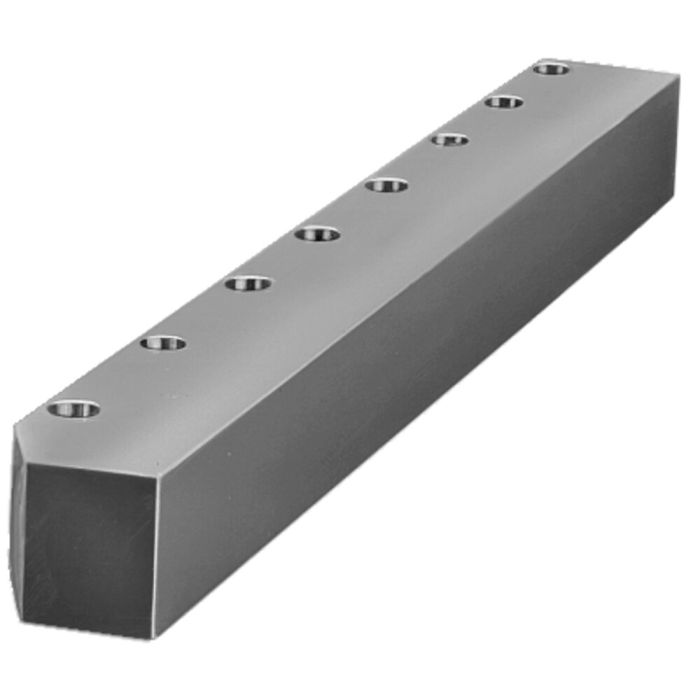

Spacer Bar
For clamping bars no. 6945-22-20-1x3, 6945-22-20-2x3, 6945-22-20-1x6
Order no.
61705
Design:
Tempering steel, phosphated. Tolerance of distance between holes ±0.2.
Application:
Spacer and guide bar for a clamping-rim or tool-pallet height of 30 mm.
Note:
For clamping bars:
- No. 6945-22-20-1x3
- No. 6945-22-20-2x3
- No. 6945-22-20-1x6
On request:
Special sizes available on request.
| Order no. | 61705 |
|---|---|
| Product type | Spacer bars |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Clamping Bar, short Nr. 61085 Max. operating pressure 400 bar, max. clamping force 60 kN, stroke 6 mm, single acting, 1 clamping circuit
- Clamping Bar, long Nr. 61689 Max. operating pressure 400 bar, max. clamping force 2x60 kN, stroke 6 mm, single acting
- Clamping Bar, long Nr. 61630 Max. operating pressure 400 bar, max. clamping force 1x120 kN, stroke 6 mm, single acting
