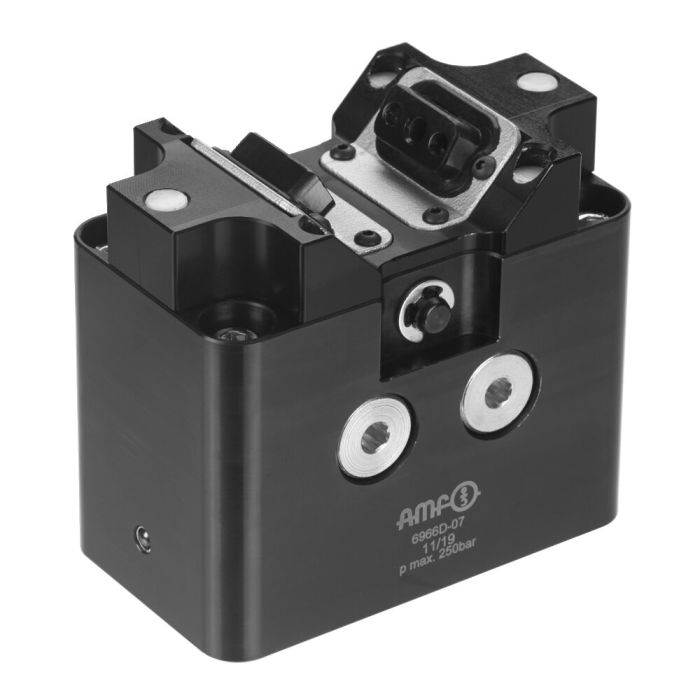

Clamping tongs
Design:
Housing made of steel, burnished. Clamp lever holder made of case-hardened steel. The clamping lever holder is driven by two piston rods installed in the housing. Oil supply via oil channels in fixture body. Supplied as standard with four fastening bolts M8 x 80 and two Viton moulded seals for the fastening bolt holder.
Application:
The clamping tongs prevent vibrations on the workpiece during machining. The clamping tongs are suitable for compensating and holding the workpieces but not for positioning them, with a repetition accuracy of 0.02 to 0.03 mm.
Features:
The clamping tongs hold the workpiece without clamping it.
Note:
The clamping levers can be designed individually, these are not supplied as standard.
* Holding force specification for lever length 0
| Order no. | 562217 |
|---|---|
| Max. operating pressure [bar] | 250 |
| Max. piston force [kN] | 7.8 |
| Max. holding force [kN] | 6.7 |
| Type of actuation | Double acting |
