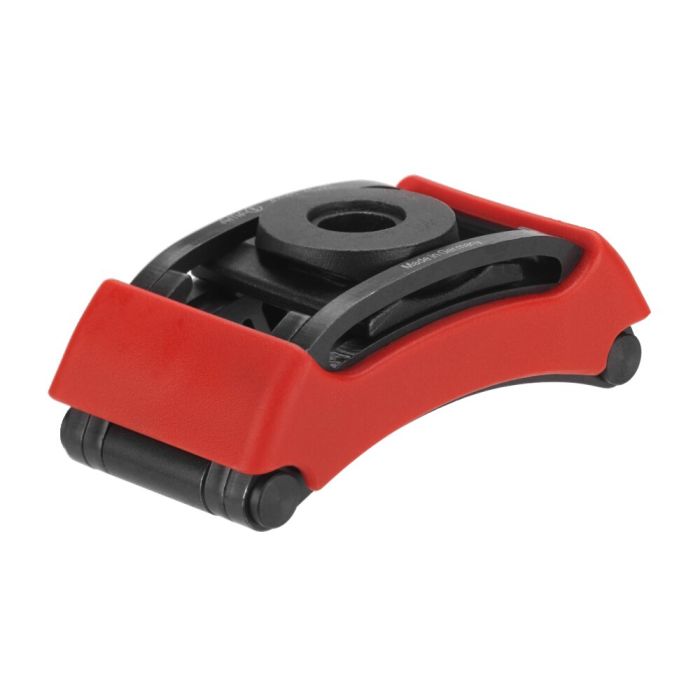

Clamps with plastic cap

Application:
The clamp is used for all clamping tasks in which clamping is effected via T-grooves, grooves and threaded bores.

Note:
For clamping, either clamping screws DIN 787, stud bolts DIN 6379 and cheese head screws ISO 4762 can be used.
A washer DIN 6340 must always be used between the hexagonal nut and U-piece!

Advantage:
Weight-saving thanks to lightweight design. Variable and fast adjustment option at a distance from the workpiece. No additional clamping supports are needed to reach the required clamping height. The U-piece is undetachable from the clamp.

*depending on depth of slot to DIN 650 and position of fixture nut.
