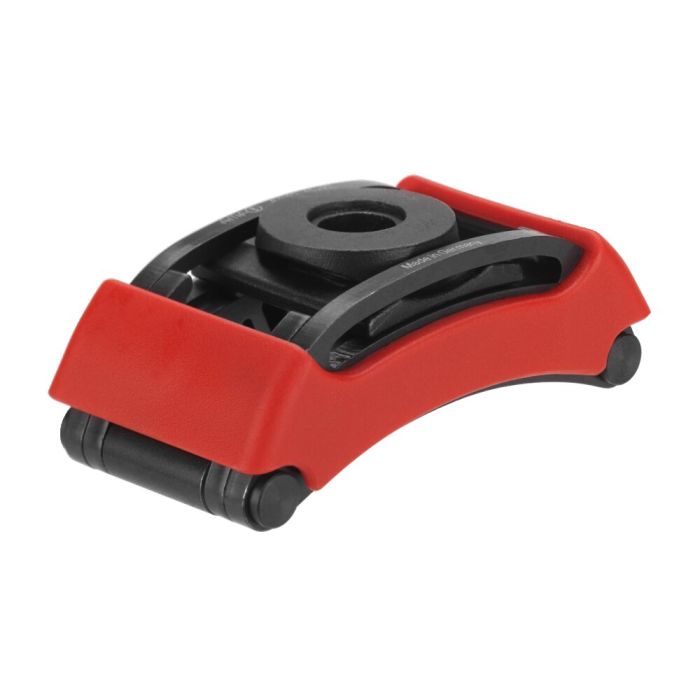

Clamps with plastic cap
Application:
The clamp is used for all clamping tasks in which clamping is effected via T-grooves, grooves and threaded bores.
Note:
For clamping, either clamping screws DIN 787, stud bolts DIN 6379 and cheese head screws ISO 4762 can be used.
A washer DIN 6340 must always be used between the hexagonal nut and U-piece!
Advantage:
Weight-saving thanks to lightweight design. Variable and fast adjustment option at a distance from the workpiece. No additional clamping supports are needed to reach the required clamping height. The U-piece is undetachable from the clamp.
*depending on depth of slot to DIN 650 and position of fixture nut.
| Order no. | 376947 |
|---|---|
| Clamping screw | Without clamping bolt |
| Clamping screw metric [M] | 22, 24 |
| Min. clamping height [mm] | 0 |
| Max. clamping height [mm] | 85 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
- Crocodile clamp Nr. 376475 Max. clamping force 75 kN, slot 20/22/24/28 mm, for clamping screw M20/24, height 0-100 mm, thickness 56 mm
