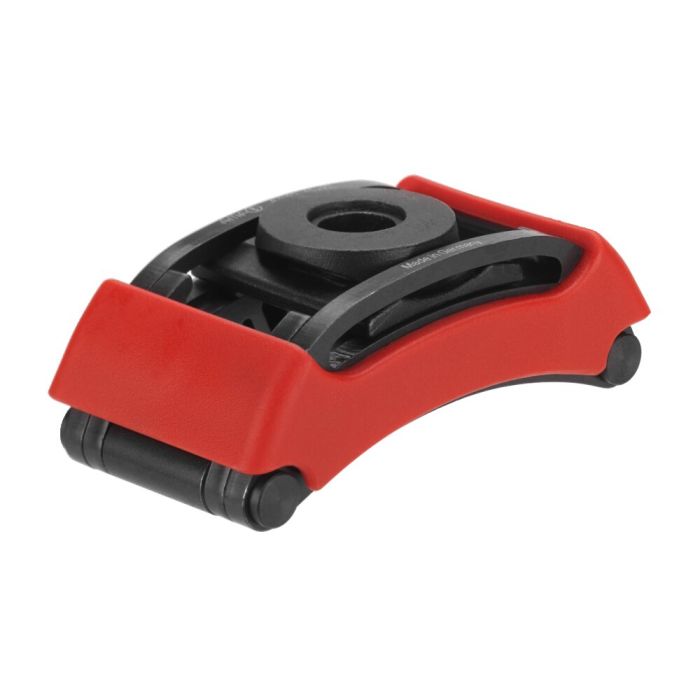

Clamps with plastic cap
Application:
The clamp is used for all clamping tasks in which clamping is effected via T-grooves, grooves and threaded bores.
Note:
For clamping, either clamping screws DIN 787, stud bolts DIN 6379 and cheese head screws ISO 4762 can be used.
A washer DIN 6340 must always be used between the hexagonal nut and U-piece!
Advantage:
Weight-saving thanks to lightweight design. Variable and fast adjustment option at a distance from the workpiece. No additional clamping supports are needed to reach the required clamping height. The U-piece is undetachable from the clamp.
*depending on depth of slot to DIN 650 and position of fixture nut.
| Order no. | 376863 |
|---|---|
| Clamping screw | Without clamping bolt |
| Clamping screw metric [M] | 10 |
| Min. clamping height [mm] | 0 |
| Max. clamping height [mm] | 15 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
- Screws for T-slot, strength class 12.9 Nr. 83923 Strength class 12.9, thread M10, slot 10 mm, length 100 mm
- Hexagonal nuts with collar (1.5 d high) Nr. 82222 Turned, size M10, height 15 mm, thread width 16 mm
- Cranked clamp with adjusting support screw, complete Nr. 71274 Slot 10 mm, with clamping stud M10x10x80, clamping height 22-46 mm
- Step clamp Nr. 70375 Only match step blocks no. 6500E, for clamping screw metric M10 and inch 3/8, length 80 mm
- Crocodile clamp, complete with DIN 787 Nr. 79780 Max. clamping force 25 kN, slot 10 mm, for clamping screw DIN 787 M10x10x100, height 0-40 mm
