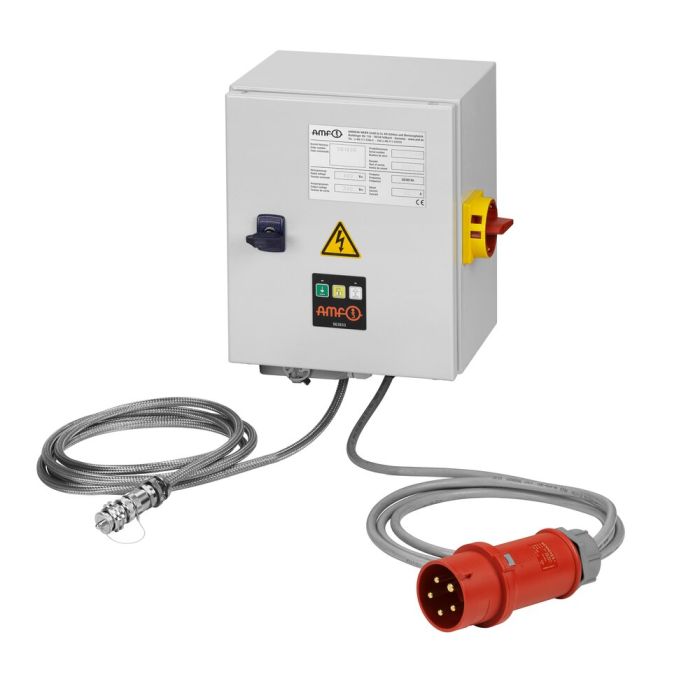

Control unit for a magnetic clamping plate

Application:
Control unit for a magnetic clamping plate.
The control unit has three operating keys:
1 x Magnetisation (MAG)
1 x Demagnetisation (DEMAG)
1 x Release
To start the magnetisation or demagnetisation cycle, the following button combinations must be pressed simultaneously:
- Magnetisation = MAG + Release
- Demagnetisation = DEMAG + Release

Features:
The connection cable and control lead have a length of 3 metres each. The connection cable has a plug for 400V / 32A and is pre-installed ready for connection. The high-quality control cable has a sheathing made of steel mesh and an IP65 bayonet connector for connection to the magnetic clamping plate.
The control unit can optionally be controlled with the hand-held controller. Connection to machine PLC is possible. The control unit has a prepared cable bushing for the machine locking device signal.
The holding force of the magnetic clamping plate can also be set with our hand-held controller 562876.

Advantage:
- Compact and connection-ready controller for a magnetic clamping plate
- Short cycle times (approx. 1 second) for magnetisation or demagnetisation
- No further installation necessary, such as of a connector plug
- Very solid and robust construction
