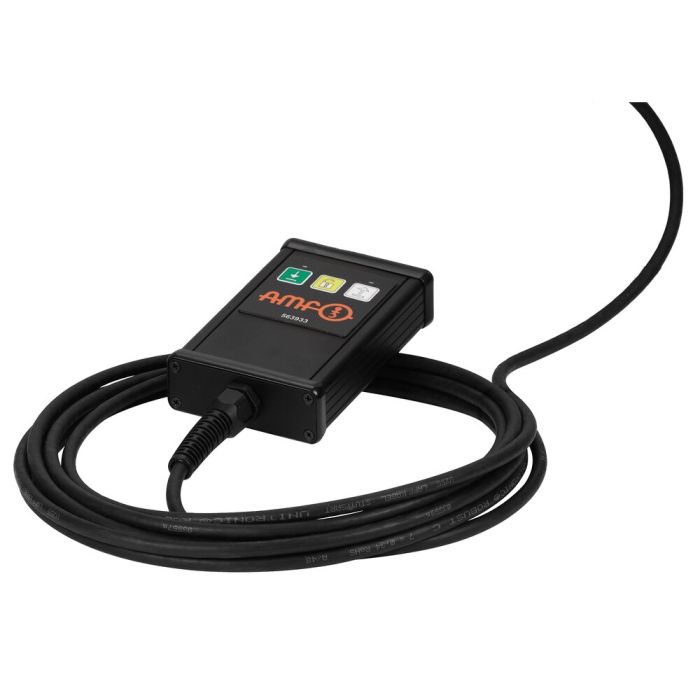

Hand-held controller for magnetic clamping technology
Application:
The hand-held controller is used to control the magnetic clamping plates through the control unit.
The hand-held controller has three function buttons:
1 x Magnetisation (MAG)
1 x Demagnetisation (DEMAG)
1 x Release
To start the magnetisation or demagnetisation cycle, the following button combinations must be pressed simultaneously:
- Magnetisation = MAG + Release
- Demagnetisation = DEMAG + Release
Features:
The hand-held controller works with all AMF control units of the series 2970SGH and is connected directly to the control unit by means of a plug connection.
The connection cable is 3 m long.
Advantage:
- Light and practical hand-held controller
- Connection-ready delivery
- Can be connected directly to the control device or control unit
- Magnetic-foil attached to the back for easy handling
| Order no. | 563933 |
|---|
