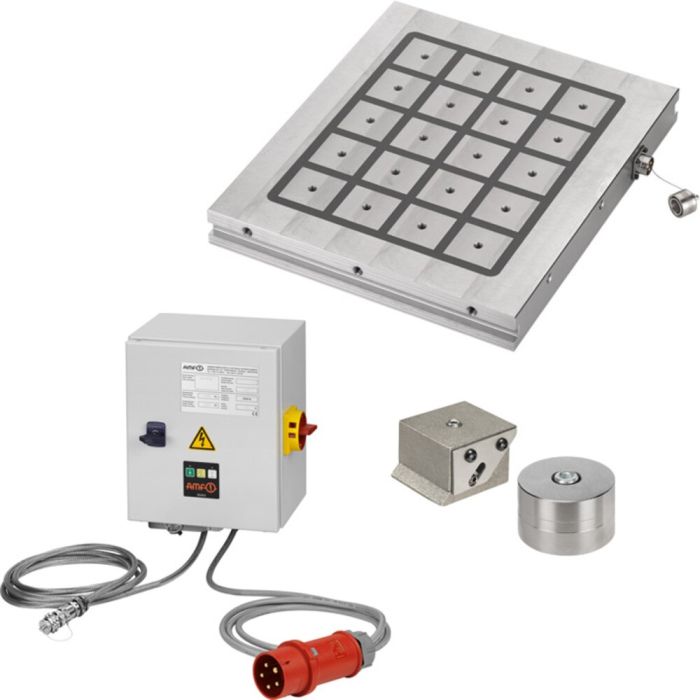

Magnetic clamping special offer package
Features:
This special and high-quality design enables reaching of a very high holding force.
The maximum specified holding force is effective when all poles are occupied.
In case of possible damage, the surface can be reworked up to 4 mm to restore the original surface quality.
The magnetic clamping plates have a height tolerance of + / - 0.1 mm in the delivered condition.
The plug contact for the control unit is a bayonet plug IP 65 incl. protective cover. The optimal holding force is achieved with a workpiece or material thickness greater than 12 mm.
A clamping slot is also available on both sides of the faces for fastening to the machine table. Likewise, fastening bores can be made in the magnetic clamping plates. A bore plan from AMF must be requested for this.
| Order no. | 559720 |
|---|---|
| Product line | Eco Line |
| Length [mm] | 390 |
| Width [mm] | 330 |
