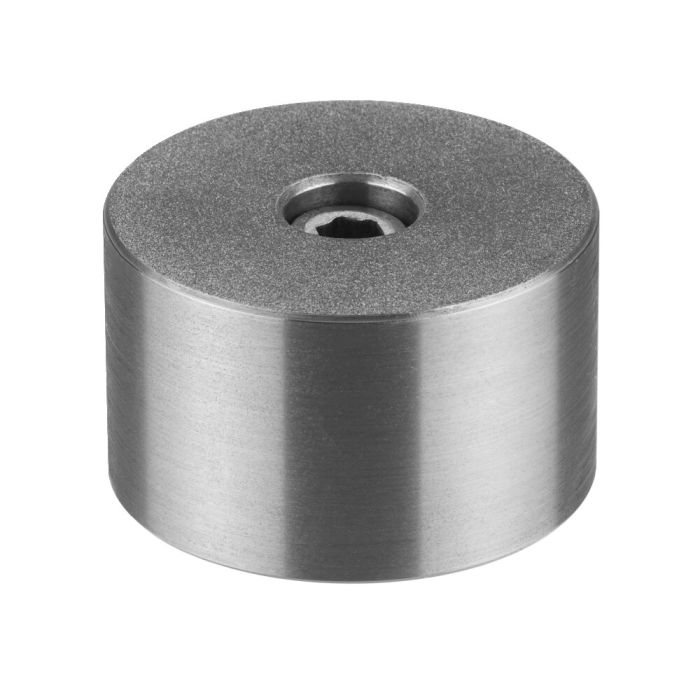

Pole extension with friction coefficient increase, fixed

Application:
Fixed pole extensions are attached directly to the poles of the magnetic clamping plate with an M8 screw.
Pre-processed or flat workpieces can be placed directly on the fixed pole extensions and clamped.
If the workpiece has uneven surfaces, it is usually placed on 3 fixed pole extensions and clamped (three-point bearing). Movable pole extensions, which adapt flexibly to the workpiece contours, are fastened onto all other poles.

Features:
The pole extensions with increased friction coefficient can be used in many ways.
With up to 250% higher shear force load, the specially coated pole extension works well in many areas of use.
The M8 fastening screw is supplied as standard.

Note:
A combination of fixed pole extensions with (556550) and without increased friction coefficient (550745) is not possible.

Advantage:
- Easy and fast installation
- Very high shear force load possible, even without stops
