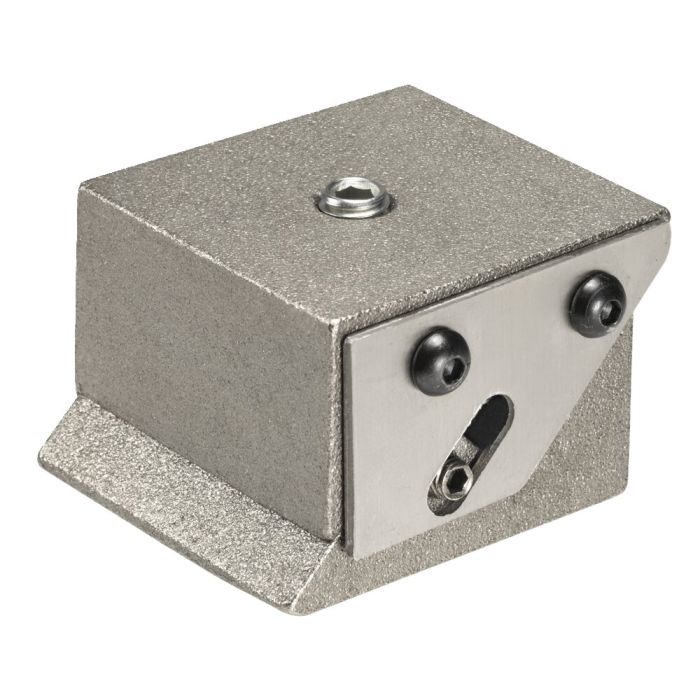

Pole extension, movable
For height adjustment on uneven materials
Order no.
550746
Application:
Moveable pole extensions are attached directly to the poles of the magnetic chuck with an M8 screw.
On uneven materials the movable pole extensions are used for height adjustment and adapt to the workpiece by means of spring force. Workpieces can be mounted and clamped warp-free.
Features:
The pole extensions are designed for the optimum magnetic flux through the pole extension into the workpiece.
The M8 fastening screw is supplied as standard.
Advantage:
- Easy and quick installation
- Optimum power flux of the magnetic field lines
- Strong holding forces
| Order no. | 550746 |
|---|---|
| Length [mm] | 49 |
| Width [mm] | 48 |
